UM-PRO 72 PROFIL L 3,6CM GY7035
Weight
0.018 kg
Series UM-PRO

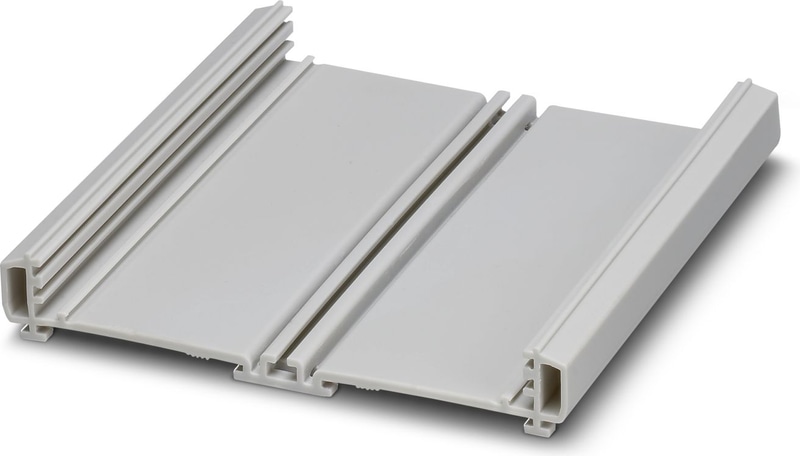

UM-PRO 72 PROFIL L 3,6CM GY7035 - Profile
Press-drawn section housings, Latching with side elements, latching with foot element, Basic profile, profile width (internal): 72 mm, length: 36 mm, depth: 19.8 mm
- Tailor-made housing length, can be cut to length with millimeter precision
- Easy integration of large electronics components, thanks to the open design
- Heat-resistant UM-PRO made from polyamide with UL approval up to 100°C
- Easy device mounting thanks to snap-mount principle (the sides are fixed without the aid of tools)
- High degree of flexibility, thanks to freely positionable covering hoods
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM-PRO |
| Type | Basic profile |
Dimensions
| Depth | 19.8 mm |
| Length | 3.6 cm |
Internal dimensions
| Profile width (internal) | 72 mm |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Number of PCB holders | 3 |
| Type of PCB mount | Insertion/securing with additional elements |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting Type | Latching with side elements, latching with foot element |
| Mounting Position | parallel to the DIN rail |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
