UM-PRO 72 COVER-R BK - Lateral element

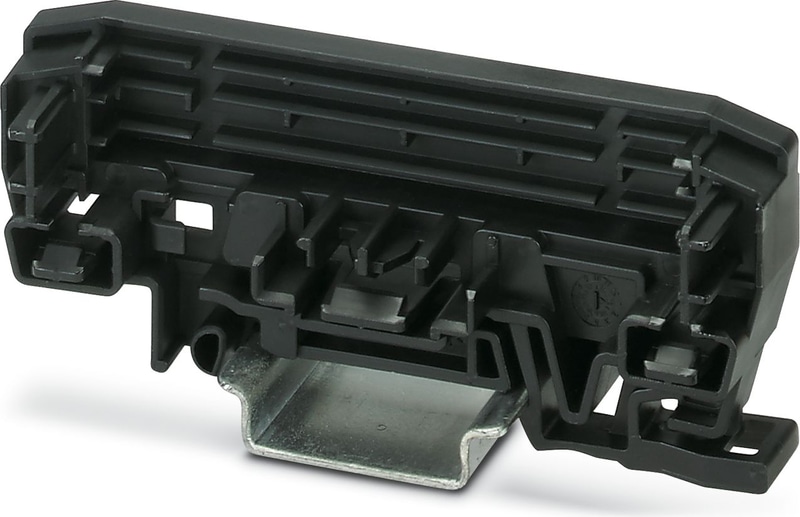

Lateral element (right) with mounting foot for DIN rails for profiles for PCB width 72 mm
- Tailor-made housing length, can be cut to length with millimeter precision
- Easy integration of large electronics components, thanks to the open design
- Heat-resistant UM-PRO made from polyamide with UL approval up to 100°C
- Easy device mounting thanks to snap-mount principle (the sides are fixed without the aid of tools)
- High degree of flexibility, thanks to freely positionable covering hoods
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM-PRO |
| Product family | UM-PRO 72 |
| Type | Side element (right) with mounting foot for the DIN rail |
Dimensions
| Width | 19.5 mm |
| Height | 92.3 mm |
| Depth | 39.45 mm |
| Depth from top edge of DIN rail | 32.45 mm |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Thermal stability / ball thrust test
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
Mechanical strength / tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Number of PCB holders | 3 |
| Type of PCB mount | Insertion/securing with additional elements |
| PCB surface | 700 mm² ... 1200 mm² (per basic profile cm) |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting Type | DIN rail mounting/wall mounting (with optional mounting flange) |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Accessories
