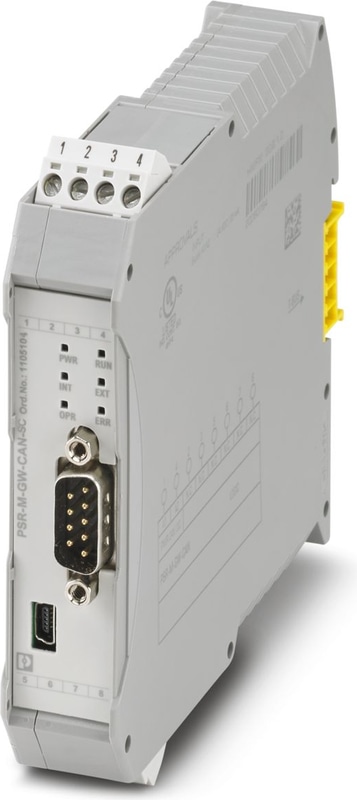

PSR-M-GW-CAN-SC - Data interface
Gateway for connecting a PSR-M base module to a higher-level controller, CANopen® , TBUS interface, plug-in screw terminal block, TBUS connector included
- Cost-effective safety solution with a high level of adaptability to individual requirements
- Fast startup, thanks to easy hardware and software configuration
- Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
- Narrow housing width of just 22.6 mm
Technical Specifications
Insulation characteristics
| Protection class | III (EN 50178) |
Electrical properties
| Maximum power dissipation for nominal condition | 1 W |
| Nominal operating mode | 100% operating factor |
| Interfaces | DIN rail TBUS for connection to the master module, supplied as standard |
Air clearances and creepage distances between the power circuits
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage/insulation | Basic insulation 4 kV |
Supply
| Designation | A1/A2 |
| Rated control circuit supply voltage US | 19.2 V DC ... 28.8 V DC |
| Rated control circuit supply voltage US | 24 V DC -20 % / +20 % (external fuse, typically 4 A) |
| Rated control supply current IS | typ. 35 mA (without network connection) |
| Rated control supply current IS | typ. 40 mA (with network connection) |
| Power consumption at US | typ. 1 W (with network connection) |
| Inrush Current | < 2.2 A (Δt = 1 ms at Us) |
| Filter time | typ. 5 ms (in the event of voltage dips at Us) |
| Protective circuit | Serial protection against polarity reversal |
| Protective circuit | Suppressor diode |
Connection data
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Tightening torque | 0.5 ... 0.6 Nm |
| Screw thread | M3 |
Data: Network interface
| Communication Protocol | CANopen® |
| Connection Method | D-SUB-9 female connector |
| Number of Connections | 1 |
| Transmission Speed | 1 Mbps |
Data: Service interface
| Connection Method | USB 2.0 Hi-Speed |
| Number of Connections | 1 |
Signaling
| Status display | 1 x LED (green), 1 x LED (green, red), 1 x LED (red) |
| Operating voltage display | 1 x green LED |
| Error indication | 2 x LED (red) |
Dimensions
| Width | 22.61 mm |
| Height | 112.58 mm |
| Depth | 115.95 mm |
Material specifications
| Color (Housing) | gray (RAL 7042) |
| Housing Material | Polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP20 |
| Min. degree of protection of inst. location | IP54 |
| Ambient Temperature (Operation) | -10 °C ... 55 °C (observe derating) |
| Ambient temperature (storage/transport) | -20 °C ... 85 °C |
| Maximum altitude | ≤ 2000 m (Above sea level) |
| Max. permissible humidity (storage/transport) | 95 % (non-condensing) |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
| Shock | 10g for Δt = 16 ms (continuous shock, 1000 shocks in each space direction) |
| Vibration (Operation) | 10 Hz ... 150 Hz, 2g |
CE
| Identification | CE-compliant |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | vertical or horizontal |
Accessories
CP-MSTB - Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
CR-MSTB - Coding section, inserted into the recess in the header or the inverted plug, red insulating material
