Official DistributorSKU
MPN
EMLP (100X30)R RD
Weight
0.658 kg

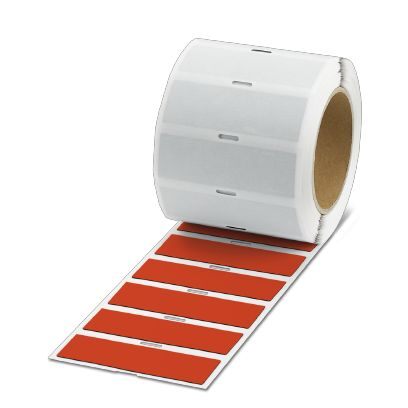

EMLP (100X30)R RD - Label
- The EMLP ... self-adhesive markers are particularly suited to marking electrical components, devices, and buttons
- The markers meet the same standards as the engraved labels, they provide high-quality visuals
- Quick and inexpensive marking with THERMOMARK ... roll printers from Phoenix Contact
- When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences
- Labeling service: Phoenix Contact can custom-label all EMLP ... markers in accordance with your requirements
Technical Specifications
Dimensions
| Length (b) | 30 mm |
| Width (a) | 100 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
| Ambient temperature (assembly) | > 18 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | red |
| Components | Silicone-free |
| Material | Polyester |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 250 |
| Number of individual labels per row | 1 |
| Mounting Type | adhesive |
| Testing substances harmful to the wetting properties of lacquers (LABS conformity) | VDMA 24364-A1-L:2018-05 |
| Result | Test passed |
| Result | Test passed |
| UV resistance | Following ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Temperature resistance | Following ANSI/UL 969-2018:03 |
| Test duration | 240 h |
| Rating 125 °C (150 °C) | Test passed |
| Test for wipe resistance of inscriptions | DIN EN 60068-2-11:2000-02 |
| Test for wipe resistance of inscriptions | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Test duration | 168 h |
| Test duration | 168 h |
| Testing in a condensation changing climate in the presence of sulfur dioxide | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Salt spray test | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
| Silicone-free | Yes |
Accessories
5145384 - Ink ribbon, for roll printers for printing the product groups TML..., WML..., WML HF..., WML-FLAG..., EML..., EML-ESD..., EML-RM..., EML-HA..., EMLS..., EMLC..., EMLP... and PMM..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
0804661 - Ink ribbon, For THERMOMARK roll printers and THERMOMARK CARD for printing material-off-the-roll product groups: EML ..., EMLP ..., EMLF ..., PML-M ..., WMTB HF-HP..., WMS-2 HF ... RD and US-material product groups: US-EML(S)P ..., US-EMLP-HA ..., US-EM(S)P ..., US-WMT ..., US-WMTB ..., US-PML-M ..., US-EMLF ..., length: 60 m, roll length: 60 m, width: 110 mm, color: white
Why Proax for Phoenix Contact 1096332?
Proax is an authorized distributor of Phoenix Contact 1096332 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
