Official DistributorSKU
MPN
EMLP (40X8)R BK
Weight
0.195 kg

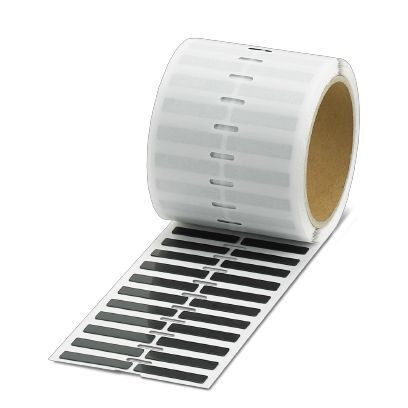

EMLP (40X8)R BK - Label
- The EMLP ... self-adhesive markers are particularly suited to marking electrical components, devices, and buttons
- The markers meet the same standards as the engraved labels, they provide high-quality visuals
- Quick and inexpensive marking with THERMOMARK ... roll printers from Phoenix Contact
- When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences
- Labeling service: Phoenix Contact can custom-label all EMLP ... markers in accordance with your requirements
Technical Specifications
Dimensions
| Length (b) | 8 mm |
| Width (a) | 40 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
| Ambient temperature (assembly) | > 18 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | black |
| Components | Silicone-free |
| Material | Polyester |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 500 |
| Number of individual labels per row | 2 |
| Mounting Type | adhesive |
| Testing substances harmful to the wetting properties of lacquers (LABS conformity) | VDMA 24364-A1-L:2018-05 |
| Result | Test passed |
| Result | Test passed |
| UV resistance | Following ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Temperature resistance | Following ANSI/UL 969-2018:03 |
| Test duration | 240 h |
| Rating 150 °C (180 °C) | Test passed |
| Test for wipe resistance of inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for wipe resistance of inscriptions | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Test duration | 168 h |
| Testing in a condensation changing climate in the presence of sulfur dioxide | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Salt spray test | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
| Silicone-free | Yes |
Accessories
0804661 - Ink ribbon, For THERMOMARK roll printers and THERMOMARK CARD for printing material-off-the-roll product groups: EML ..., EMLP ..., EMLF ..., PML-M ..., WMTB HF-HP..., WMS-2 HF ... RD and US-material product groups: US-EML(S)P ..., US-EMLP-HA ..., US-EM(S)P ..., US-WMT ..., US-WMTB ..., US-PML-M ..., US-EMLF ..., length: 60 m, roll length: 60 m, width: 110 mm, color: white
