SKU
Weight
2.452 kg
Series TS System Chassis 17 x 73 mm

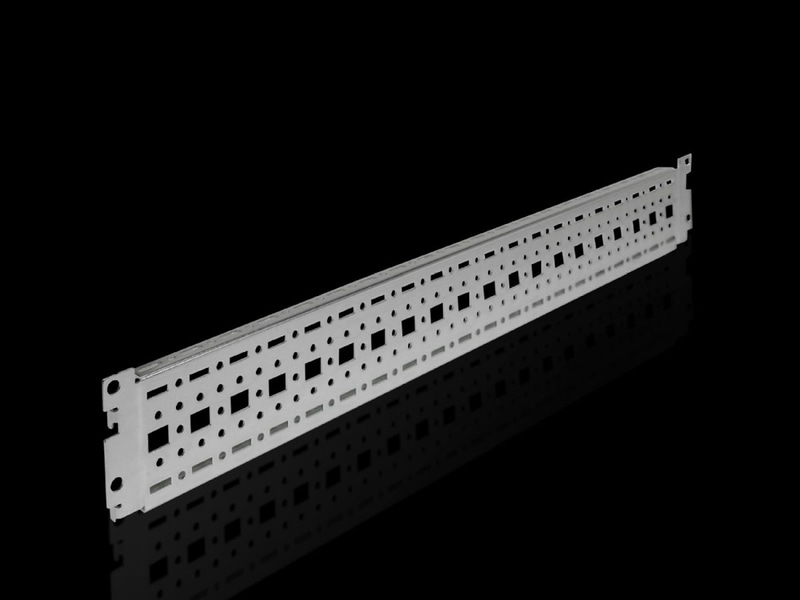

TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 600 mm, L: 540 mm
Supply includes
Assembly screws
TS System Chassis 17 x 73 mm
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Technical Specifications
Suitable for
| Enclosure Type | VX SE |
| To fit width/depth | 600 mm |
| Version | For the outer mounting level |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Length | 540 mm |
| Installation options | On the vertical TS, VX SE enclosure profile: on the outer mounting level, all-round, height-offset |
| Mounting tip | The rail for interior installation is required when installing in TP |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 2.452 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177212152 |
| ETIM 7.0 | EC002625 |
| ECLASS 8.0 | 27189234 |
