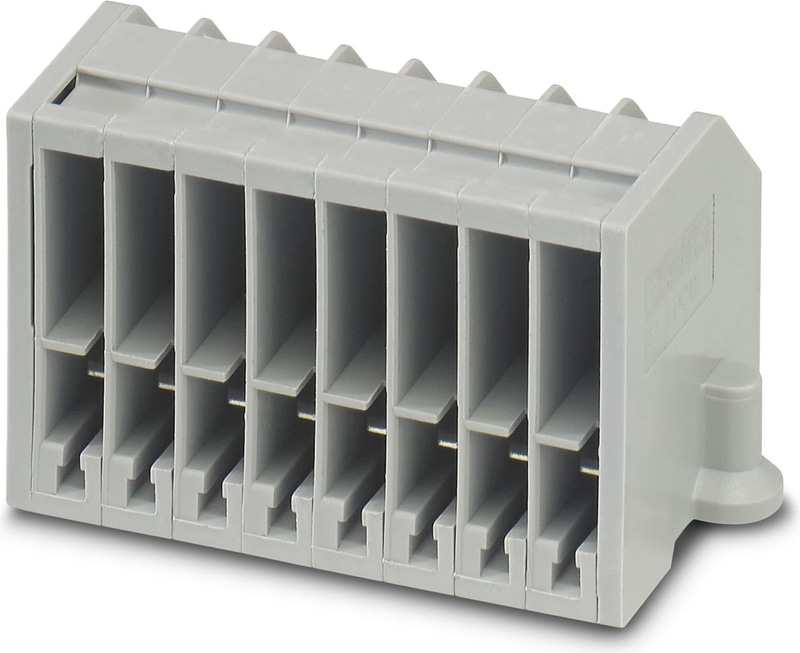

The figure shows a similar product
1074462
Official DistributorSKU
PHX1074462
MPN
FC 4-PCB/4
Weight
0.02 kg
Series FC
FC 4-PCB/4 - Connector
PCB header, 4-pos.
Technical Specifications
Product properties
| Number of Positions | 4 |
| Number of rows | 1 |
| Potentials | 4 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 4 kV |
| Maximum power dissipation for nominal condition | 0.77 W |
Connection data
| Nominal cross section | 2.5 mm² |
| Rated cross section AWG | 14 |
Level 1
| Connection in acc. with standard | IEC 61984 |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Cross section AWG | 20 ... 14 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 14 (converted acc. to IEC) |
| Nominal Current | 15 A |
| Maximum Load Current | 15 A |
| Nominal Voltage | 320 V |
Dimensions
| Width | 41.1 mm |
| Height | 29.1 mm |
| Depth | 34.3 mm |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Electrical tests
| Short-time withstand current 2.5 mm² | 0.01 kA |
| Result | Test passed |
Mechanical data
| Open side panel | No |
Needle-flame test
| Time of exposure | 30 s |
| Result | Test passed |
Oscillation/broadband noise
| Specification | DIN EN 60255-21-1:1996-05 (following) |
| Frequency | 10 Hz ... 150 Hz |
| Acceleration | 1g (84.2 Hz ... 150 Hz) |
| Test directions | X-, Y- and Z-axis |
| Result | Test passed |
Shocks
| Specification | DIN EN 60255-21-1:1996-05 (following) |
| Pulse shape | Half-sine |
| Acceleration | 30g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and Regulations
| Connection in acc. with standard | IEC 61984 |
Mounting
| Mounting Type | PCB mounting |
Accessories
C-SCFFI 1,5/6,3X0,8 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 6.3 x 0.8 mm
C-SCFFI 2,5/6,3X0,8 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 6.3 x 0.8 mm
C-SCFFI 6/6,3X0,8 - Slip-on sleeve, fully insulated, yellow, 4 ... 6 mm2, for 6.3 x 0.8 mm plugs
