1070218
Official DistributorSKU
PHX1070218

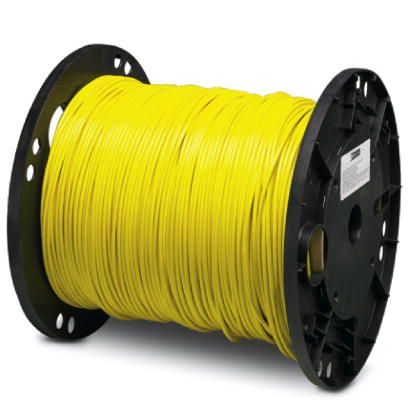

Cable reel - SAC-3P-18AWG-OE-OE-547-100,0US
By the meter, Cable reel, PVC, yellow, 3-wire, color single wire: brown, blue, black, cable length: 100 m
Technical Specifications
Dimensions
| Length of Cable | 100 m |
General
| Number of Positions | 3 |
Cable
| Cable Type | PVC AWG 18 yellow 105°C |
| Cable type (abbreviation) | 547 |
| UL AWM style | 2517 (105 °C / 300 V) |
| AWG Signal Line | 18 |
| Conductor structure signal line | 41x 0.16 mm |
| Core diameter including insulation | 1.7 mm ±0.03 mm |
| Wire colors | brown, blue, black |
| Overall twist | 3 wires, twisted |
| External cable diameter D | 5.7 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 8 x D |
| External sheath, color | yellow |
| Outer sheath, material | PVC |
| Material conductor insulation | PVC |
| Conductor material | Tin-plated Cu litz wires |
| Nominal voltage, cable | 300 V |
| Special Properties | C(UL) CMX OUTDOOR-CMG 105 °C |
| Special Properties | UL ITC/PLTC 105 °C |
| Special Properties | CSA AWM I/II A/B FT4 105 °C / 300 V |
| Flame resistance | FT4 |
| Ambient Temperature (Operation) | -30 °C ... 105 °C (cable, fixed installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
Why Proax for Phoenix Contact 1070218?
Proax is an authorized distributor of Phoenix Contact 1070218 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
