Name: 1068454
Brand: Phoenix Contact
SKU: PHX1068454
Price: 9.0900 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

SACC-CIP-M8FSD-4P SMD SH R32

Weight

0.005 kg

Series SACC-CIP-M

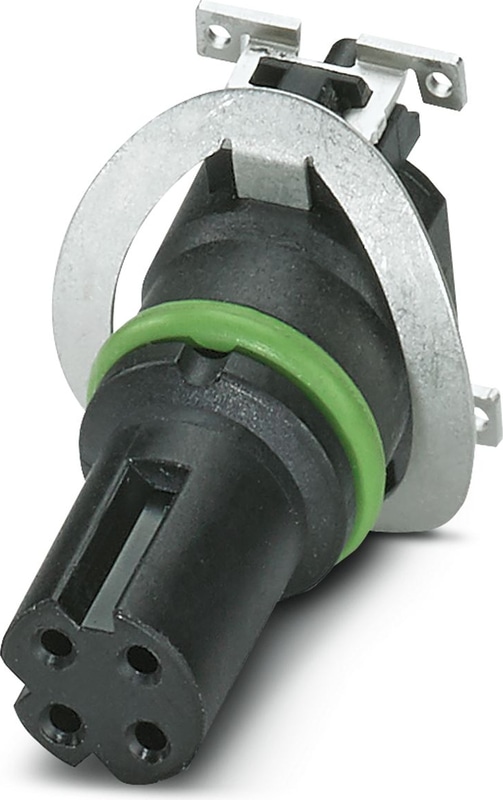

SACC-CIP-M8FSD-4P SMD SH R32 - Contact carrier

Contact carrier, Ethernet/PROFINET CAT5 (100 Mbps), 4-position, Socket, straight, M8, coding: D, PCB mounting, SMD reflow

Reduced mounting costs thanks to two-piece device connector
Packaging available for automated pick and place assembly
All common pin assignments and codings available
Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate
Additional gasket for the device when not plugged in

Notes

Notes on operation

The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Product properties

Application	Data/signal
Sensor Type	Ethernet/PROFINET
Number of Positions	4
Seal present	yes
Shielded	yes
Coding	D
Thread type	M8

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	1.5 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	50 V AC
Nominal voltage U_N	60 V DC
Nominal current I_N	4 A
Transmission characteristics (category)	CAT5 (IEC 11801:2002)

Connection data

Connection Method

SMD reflow

Interfaces

Signal type/category

Ethernet/PROFINET CAT5, 100 Mbps

Material specifications

Flammability rating according to UL 94	V0
Seal material	FKM
Contact Material	CuZn
Contact surface material	Au
Contact carrier material	PA

Connection 1

Head design	Socket
Head cable outlet	straight
Head thread type	M8
Coding	D

Cable/line

Signal type/category

Ethernet/PROFINET CAT5, 100 Mbps

Mechanical data

Insertion/withdrawal cycles

> 100

Ambient conditions

Degree of protection (when plugged in)	IP67 (correctly plugged in and locked)
Degree of Protection	IP67 (correctly plugged in and locked)
Degree of Protection	IP67
Ambient Temperature (Operation)	-25 °C ... 105 °C
Ambient Temperature (Operation)	-40 °C ... 105 °C (without mechanical actuation)

M8

Standard designation	M8 connector
Standards/specifications	IEC 61076-2-114
Note	In line with

Mounting

Mounting Type

PCB mounting

Packaging specifications

Type of packaging

Belt
