SACC-CIP-M8FS-3P SMD SH R32
Weight
0.005 kg
Series SACC-CIP-M

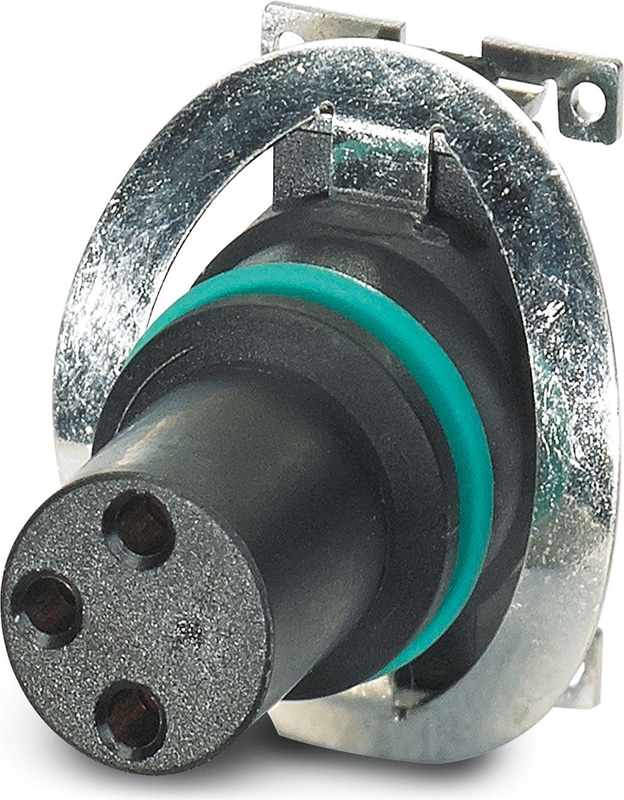

SACC-CIP-M8FS-3P SMD SH R32 - Contact carrier

Contact carrier, 3-position, Socket, straight, M8, coding: A, PCB mounting, SMD reflow, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1308278

  • Reduced mounting costs thanks to two-piece device connector
  • Packaging available for automated pick and place assembly
  • All common pin assignments and codings available
  • Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate
  • Optional shield connection and seal for the device when not plugged in
Technical Specifications

Product properties

ApplicationSignal
Number of Positions3
Seal presentyes
Shieldedyes
CodingA
Thread typeM8

Insulation characteristics

Overvoltage categoryIII

Electrical properties

Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
Nominal voltage UN60 V DC
Nominal current IN4 A

Connection data

Connection MethodSMD reflow

Signaling

Status displayNo
Status display presentNo

Material specifications

Flammability rating according to UL 94V0
Seal materialFKM
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA

Connection 1

Head designSocket
Head cable outletstraight
Head thread typeM8
CodingA

Mechanical data

Insertion/withdrawal cycles> 100

Ambient conditions

Degree of protection (when plugged in)IP67 (correctly plugged in and locked)
Degree of ProtectionIP67
Ambient Temperature (Operation)-25 °C ... 105 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 105 °C (without mechanical actuation)

Standards and Regulations

Standard designationM8 connector
Standards/specificationsIEC 61076-2-104

Mounting

Mounting TypePCB mounting

Packaging specifications

Type of packagingBelt
Accessories
  • 1412506
    1412506
    SACC-BP-F-M8/M12 SMD - Housing screw connection, Socket, M12, Rear mounting, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239003
  • 1412504
    1412504
    Housing screw connection - SACC-FP-F-M8/M10 SMD
  • 1412501
    1412501
    Housing screw connection - SACC-FP-F-M8/PRESS SMD
