1045987
Official DistributorSKU
PHX1045987
MPN
DS-PTIO 1,5/S
Weight
0.002 kg

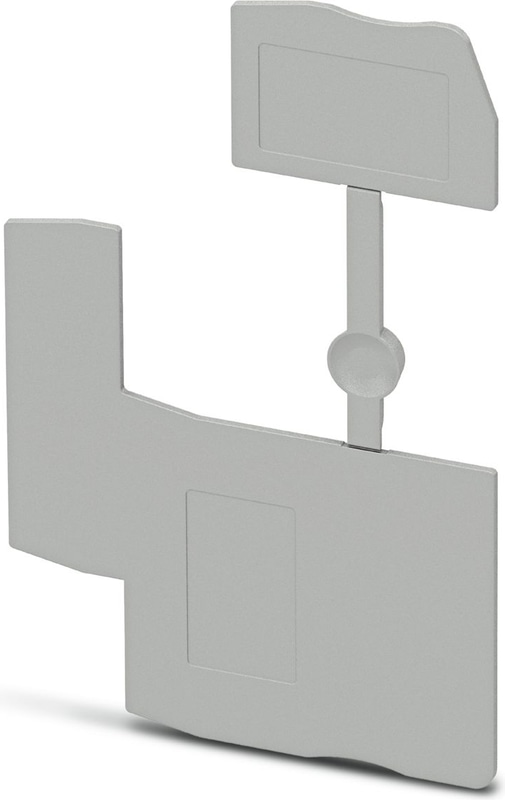

DS-PTIO 1,5/S - Cover segment
End cover segments, large segment: 32.25 x 13.83 x 0.9, small segment: 22.65 x 11.65 x 0.9, color: gray
Technical Specifications
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Material specifications
| Color | gray |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Width | 0.8 mm |
| End cover width | 0.8 mm |
| Height | 121.65 mm |
| Depth | 44.6 mm |
| Min. material thickness | 1 mm |
Notes
| General | A cover segment should be used if terminal blocks with a higher number of terminal points cannot be covered by the contour of another terminal block. |
Why Proax for Phoenix Contact 1045987?
Proax is an authorized distributor of Phoenix Contact 1045987 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
