Official DistributorSKU
MPN
VAL-SEC-T2-2+F-220DC-FM
Weight
0.311 kg
Series VAL-SEC-T2

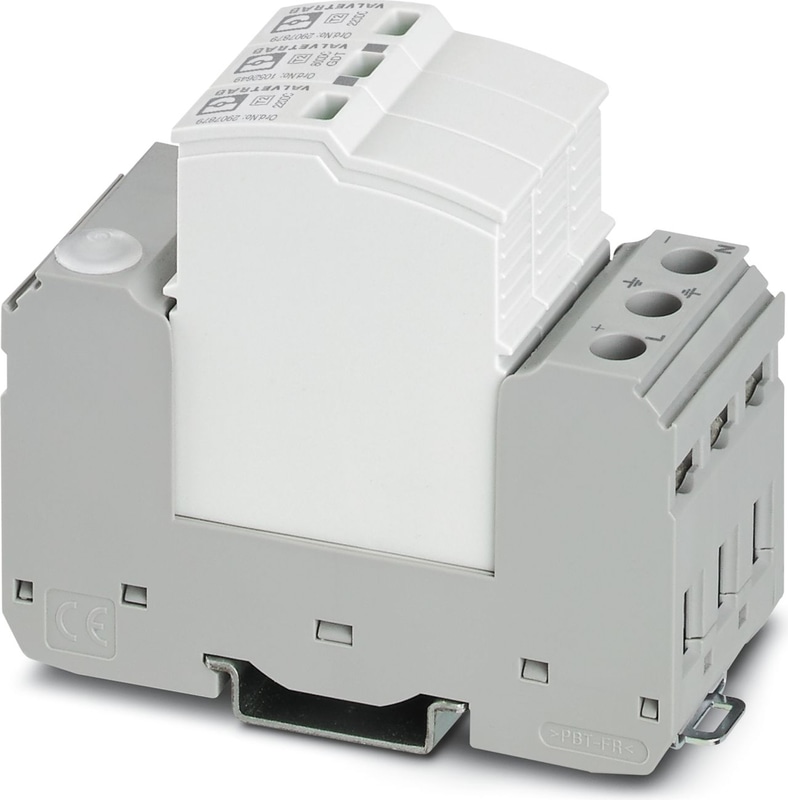

VAL-SEC-T2-2+F-220DC-FM - Type 2 surge arrester
Pluggable surge protective device free of leakage current for 2-pos. isolated and grounded DC voltage systems with linear operating characteristic up to 220 V DC, for DIN rail mounting, 3-pos. base element with remote indication contact, three pluggable temperature-monitored protective elements, status message on each plug.
- Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
- Easy to maintain due to consistently pluggable protection modules
- Excellent level of information provided by mechanical/visual status indicator and remote indication contact
- More space in the control cabinet due to the narrow overall width of just 12 mm per position
- Free of leakage current so there is no influence on insulation monitoring
Technical Specifications
Product properties
| Product family | SEC Family |
| IEC test classification | II |
| IEC test classification | T2 |
| EN type | T2 |
| IEC power supply system | DC |
| Type | DIN rail module, two-section, divisible |
| Number of Positions | 2 |
| Surge protection fault message | Optical, remote indicator contact |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 200 V DC ... 220 V DC |
Indicator/remote signaling
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Operating Voltage | 5 V AC ... 250 V AC (Altitude ≤ 2000 m (amsl)) |
| Operating Voltage | 5 V AC ... 150 V AC (Altitude > 2000 m (amsl)) |
| Operating Voltage | 125 V DC (200 mA DC) |
| Operating current | 5 mA AC ... 1 A AC |
| Operating current | 1 A DC (30 V DC) |
Connection data
| Connection Method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| Stripping length | 16 mm |
| Conductor cross section flexible | 2.5 mm² ... 16 mm² |
| Conductor cross section rigid | 2.5 mm² ... 25 mm² |
| Conductor cross section AWG | 12 ... 4 |
| Connection Method | Fork-type cable lug |
| Conductor cross section flexible | 1.5 mm² ... 6 mm² |
Remote fault indicator contact
| Connection Method | Plug-in/screw connection via COMBICON |
| Screw thread | M2 |
| Tightening torque | 0.25 Nm |
| Stripping length | 7 mm |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Dimensions
| Width | 37.3 mm |
| Height | 97.9 mm |
| Depth | 74.5 mm (incl. DIN rail 7.5 mm) |
| Horizontal pitch | 2 Div. |
Material specifications
| Color (Male connector) | light grey (RAL 7035) |
| Color (Base element) | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA6.6-FR 20% GF |
| Insulating material | PBT-FR |
| Material group | I |
| Housing Material | PA 6.6-FR 20 % GF |
| Housing Material | PBT-FR |
Protective circuit
| Mode of protection | (DC+) - (DC-) |
| Mode of protection | (DC+/DC-) - PE |
| Direction of action | (DC+/DC-) - PE |
| Nominal voltage UN | 200 V DC ... 220 V DC |
| Maximum continuous voltage UC | 250 V DC |
| Rated load current IL | 40 A (Biconnect M4 fork-type cable lug 6 mm²) |
| Rated load current IL | 63 A (TWIN ferrule 2 x 10 mm²) |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In (8/20) µs | 20 kA |
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Total discharge current Itotal (8/20) µs | 40 kA |
| Short-circuit current rating ISCCR | 0.2 kA (without backup fuse) |
| Short-circuit current rating ISCCR | 6 kA (for 20 A gG/B backup fuse) |
| Voltage protection level Up (DC+) - (DC-) | ≤ 3 kV |
| Voltage protection level Up (DC+/DC-) - PE | ≤ 1.9 kV |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs (DC+/DC-) - PE | ≤ 1.9 kV |
| TOV behavior at UT | 320 V DC (5 s / withstand mode) |
| Max. backup fuse with V-type through wiring | 20 A (gG / B at ISCCR > 200 A) |
| Max. backup fuse with branch wiring | 20 A (gG / B at ISCCR > 200 A) |
Additional technical data
| Maximum continuous voltage UC | 264 V AC (for operation in safety lighting systems) |
| Continuous operating current ICPV | 10 µA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 5000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
EN 61643-11
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | DIN rail: 35 mm |
