Terminal point designation, alphabetical
Official DistributorSKU
MPN
AGK PT 4X6/M12
Weight
0.042 kg
Series AGK-PT

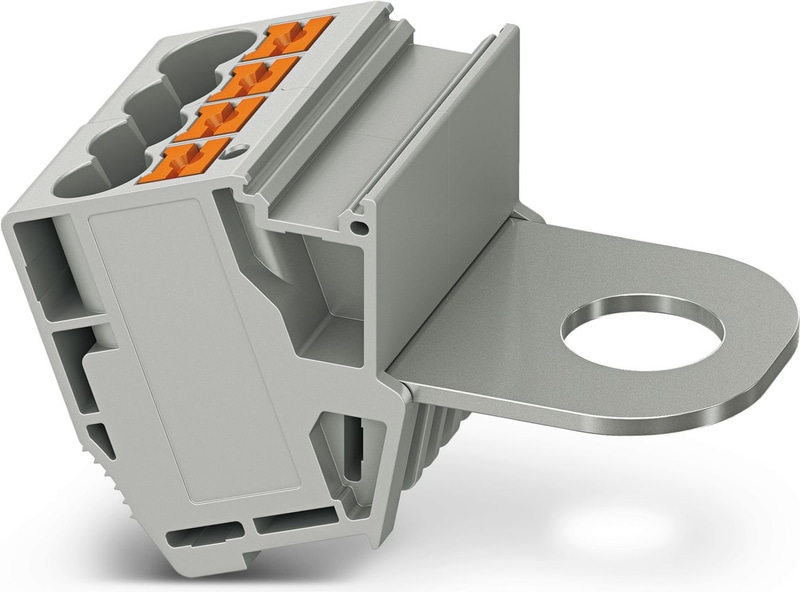

AGK PT 4X6/M12 - Pick-off terminal block
Pick-off terminal block, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 5, connection method: Push-in connection, 1 level, Rated cross section: 6 mm2, cross section: 0.5 mm2 - 10 mm2, Bolt connection, 1 level, mounting type: on base element, color: gray
- The fully insulated, optionally used pick-off terminal block enables voltage pick-off
- Large-surface marking
Technical Specifications
Product properties
| Number of Connections | 5 |
| Number of rows | 1 |
| Potentials | 1 |
Insulation characteristics
| Overvoltage category | III |
Electrical properties
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.31 W |
Connection data
| Number of connections per level | 5 |
| Nominal cross section | 6 mm² |
| Rated cross section AWG | 10 |
1 level
| Stripping length | 10 mm ... 12 mm |
| Internal cylindrical gage | A5 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.5 mm² ... 10 mm² |
| Cross section AWG | 20 ... 8 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 6 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 10 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 6 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 6 mm² |
| Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.5 mm² ... 1.5 mm² |
| Nominal Current | 41 A |
| Maximum Load Current | 57 A |
| Maximum total current | 109 A (Bolt connection) |
| Nominal Voltage | 1000 V |
| Nominal cross section | 6 mm² |
| Screw thread | M12 |
| Note | Connection bolts |
| Tightening torque | 14 ... 31 Nm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section flexible | 6 mm² ... 120 mm² |
| Conductor cross section, flexible [AWG] | 10 ... 250 kcmil (converted acc. to IEC) |
| Nominal Current | 41 A |
Cable lug connection
| Cross section range AWG | (converted acc. to IEC) |
| Hole diameter | 12.4 mm |
| Width | 32 mm |
| Bolt diameter | 12 mm |
| Screw thread | M12 |
Dimensions
| Width | 31 mm |
| Height | 57.4 mm |
| Depth | 32.3 mm |
| Hole diameter | 12.4 mm |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
Mechanical data
| Open side panel | No |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
| Connection in acc. with standard | IEC 60947-7-1 |
Mounting
| Mounting Type | on base element |
Accessories
HV M12/1 - High-current connector, nom. voltage: 1000 V, nominal current: 269 A, number of connections: 1, connection method: Bolt connection, Rated cross section: 120 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: latching, for terminal block width: 16 mm, Number of individual labels: 24, text field height: 4.7 mm, text field width: 15.2 mm
