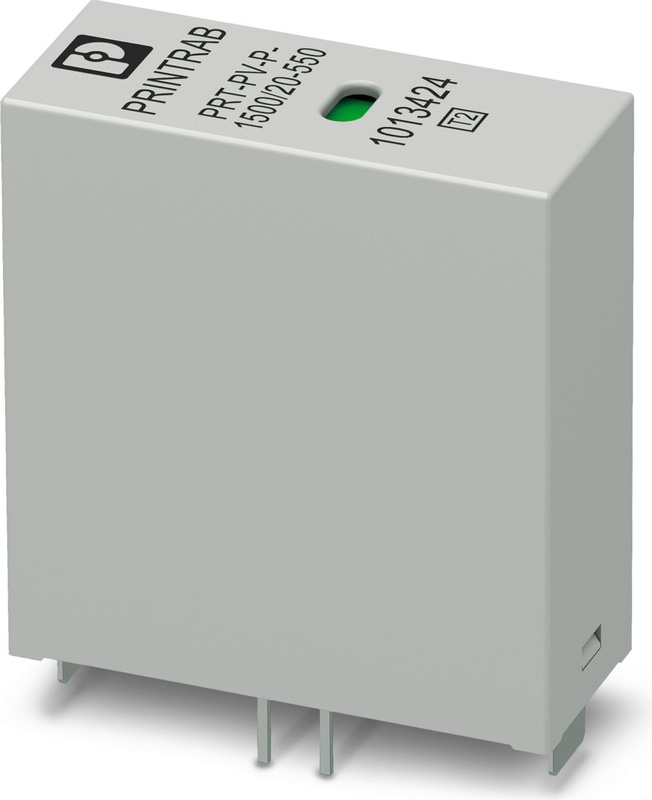

PRT-PV-P-1500/20-550 - Type 2 surge arrester
Surge protective device for space-saving PCB installation, in accordance with type 2 / CLASS II, for 2-pol isolated 1500 V DC voltage systems, with integrated remote indication contact in each plug, status indication on the module
- Small-scale onboard surge protector
- Reliable remote signaling alarm contact function
- Conformance with current standards
Technical Specifications
Product properties
| Product family | PRINTRAB |
| IEC test classification | PV |
| EN type | PV |
| Installation location | Interior |
| Installation location of the disconnect device | Internal |
| Accessibility | Accessible |
| Connection configuration | Y configuration |
| SPD failure behavior | OCFM |
Insulation characteristics
| Overvoltage category | II |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
| Dielectric strength | < 5.8 kV DC (1 min) |
Indicator/remote signaling
| Connection name | NC/NO |
| Switching function | normal/deterioration |
| Operating Voltage | 30 V AC |
| Operating Voltage | 30 V DC |
| Operating current | 1 A AC |
| Operating current | 1 A DC |
Dimensions
| Width | 18.8 mm |
| Height | 44 mm |
| Depth | 41.9 mm (Without pin length) |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PBT 10 % GF / PA 6.6 |
| Material group | I |
| Housing Material | PBT 10 % GF/PA 6.6 |
Protective circuit
| Nominal voltage UN | 500 V AC (IT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 550 V AC (single item) |
| Residual current IPE | ≤ 100 µA (Ucpv/Single) |
| Residual current IPE | ≤ 100 µA () |
| Nominal discharge current In (8/20) µs | 20 kA |
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Short-circuit current rating ISCCR | 25 kA |
| Voltage protection level Up | ≤ 2.4 kV (Single) |
| Voltage protection level Up | ≤ 4.6 kV (2 serial connections) |
| Response time tA | ≤ 25 ns |
| Max. backup fuse with branch wiring | 125 A (aR) |
PV protective circuit
| Connection configuration | Y configuration |
| SPD failure behavior | OCFM |
Protective circuit DC voltage side (DC)
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Response time tA | ≤ 25 ns |
| Insulation resistance Riso | > 5 MΩ () |
| Max. backup fuse with branch wiring | 125 A (aR) |
| Nominal discharge current In (8/20) µs | 20 kA |
| Continuous operating current ICPV | ≤ 20 µA (2 serial connections) |
| Maximum continuous operating voltage UCPV | 750 V DC (Single) |
| Maximum continuous operating voltage UCPV | 1500 V DC (2 serial connections) |
| Short-circuit current rating ISCPV | 2000 A |
| Residual current IPE | ≤ 100 µA (Ucpv/Single) |
| Residual current IPE | ≤ 100 µA () |
| Voltage protection level Up | ≤ 2.4 kV (Single) |
| Voltage protection level Up | ≤ 4.6 kV (2 serial connections) |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 5000 m (Standard insulation) |
| Altitude | ≤ 3000 m (Reinforced insulation) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g ±X, ±Y, ±Z () |
| Vibration (Operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
Standards and Regulations
| Standards/specifications | IEC 61643-31 |
| Standards/specifications | EN 61643-31 |
Mounting
| Mounting Type | PCB mounting |
