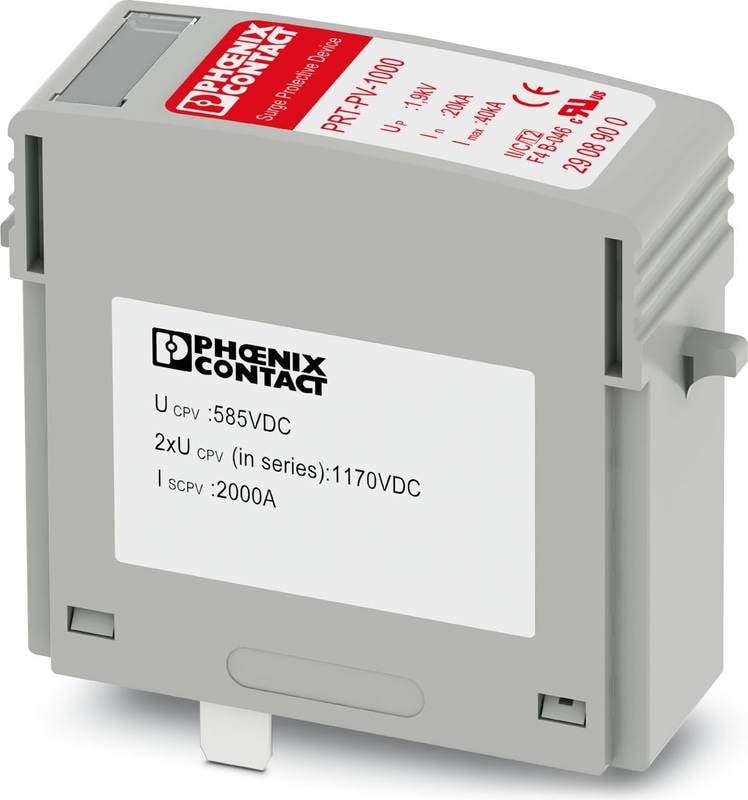

PRT-PV-1000 - Type 2 surge arrester
Integrated onboard lightning arrester in accordance with Type 2/Class II for MPPT protection of single and multiple circuits
Technical Specifications
Product properties
| Product family | PRINTRAB |
| EN type | T2 |
| Type | PCB onboard surge protector |
| Distance between live and grounded parts | 8.2 mm |
| Installation location | Interior |
| Installation location of the disconnect device | Internal |
| Accessibility | Accessible |
| SPD failure behavior | OCM |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Indicator/remote signaling
| Connection name | NC/NO |
| Switching function | normal/deterioration |
| Operating Voltage | 30 V AC |
| Operating Voltage | 30 V DC |
| Operating current | 1 A AC |
| Operating current | 1 A DC |
Dimensions
| Width | 17.5 mm |
| Height | 52.4 mm |
| Depth | 49 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6-FR |
| Material group | I |
| Housing Material | PA 6.6-FR |
Protective circuit
| Residual current IPE | ≤ 100 µA |
| Standby power consumption PC | ≤ 125.00 mVA |
| Nominal discharge current In (8/20) µs | 20 kA |
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Total discharge current Itotal (8/20) µs | 40 kA |
| Voltage protection level Up | ≤ 1.9 kV (single item) |
| Voltage protection level Up | ≤ 3.75 kV (2 serial connections) |
| Residual voltage Ures | ≤ 1.9 kV (at In) |
| Residual voltage Ures | ≤ 2.4 kV (at 40 kA) |
| Response time tA | ≤ 25 ns |
Protective circuit DC voltage side (DC)
| Open circuit voltage UOCSTC | ≤ 485 V DC (single item) |
| Open circuit voltage UOCSTC | ≤ 970 V DC (2 serial connections) |
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Response time tA | ≤ 25 ns |
| Total discharge current Itotal (8/20) µs | 40 kA |
| Insulation resistance Riso | > 5 GΩ (at 500 V DC) |
| Nominal discharge current In (8/20) µs | 20 kA |
| Continuous operating current ICPV | < 100 µA |
| Maximum continuous operating voltage UCPV | 585 V DC (single item) |
| Maximum continuous operating voltage UCPV | 1170 V DC (2 serial connections) |
| Short-circuit current rating ISCPV | 2000 A |
| Residual voltage Ures | ≤ 1.9 kV (at In) |
| Residual voltage Ures | ≤ 2.4 kV (at 40 kA) |
| Residual current IPE | ≤ 100 µA |
| Voltage protection level Up | ≤ 1.9 kV (single item) |
| Voltage protection level Up | ≤ 3.75 kV (2 serial connections) |
| Standby power consumption PC | ≤ 125.00 mVA |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 5000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 5g (10-500 Hz/2.5 h/XYZ) |
UL specifications
| Maximum continuous operating voltage MCOV | 585 V DC (Ld-Ld) |
| Nominal discharge current In | 20 kA |
| Mode of protection | Ld-Ld |
| Nominal Voltage | 485 V DC |
| Measured limiting voltage MLV | 1900 V |
| SPD Type | 4CA |
Standards and Regulations
| Standards/specifications | EN 50539-11 |
| Note | 2013 |
| Standards/specifications | NB/T 32004/GF 026: 2013 |
Mounting
| Mounting Type | PCB mounting |
Why Proax for Phoenix Contact 2908900?
Proax is an authorized distributor of Phoenix Contact 2908900 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
