8455600
Official DistributorBy Rittal
SKU
RIT8455600
Weight
116.3 kg
This product is Not Cancellable/Not Returnable
This item is ineligible for free shipping due to its size/weight.

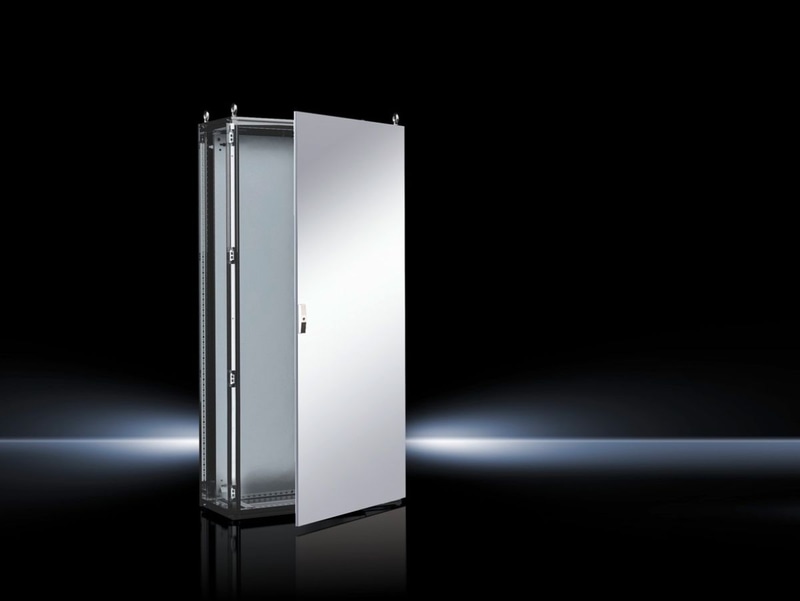

TS Bayed enclosure system, WHD: 800x1800x500 mm, Stainless steel 1.4301, with mounting plate, single door at the front
Supply includes
Enclosure frame
Door(s)
Right-hand door catch on single-door enclosures may be swapped to the left
Roof plate
Base Plates
Rear panel
Mounting plate
4 eyebolts
Lock: 3 mm double-bit
2 TS punched rails, 18 x 38 mm
Technical Specifications
Dimensions
| Width | 800 mm |
| Height | 1,800 mm |
| Depth | 500 mm |
Material
| Enclosure frame | Stainless steel 1.4301 (AISI 304), 1.5 mm |
| Roof | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Door | Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed |
| Rear panel | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Base plates | Stainless steel 1.4301 (AISI 304), 1.5 mm |
| Mounting plate | Carbon steel, 3.0 mm |
Mounting plate
| Width | 699 mm |
| Height | 1,696 mm |
Surface finish
| Enclosure frame and base plates | Uncoated |
| Door, roof and rear panel | Exterior brushed, grain size 400 |
| Mounting plate | Zinc-plated |
| Number of doors | 1 |
| Protection category IP to IEC 60 529 | IP 55 |
| Standard | NEMA 12 |
| IK code | IK09 |
| Note | Due to the hardness of the material, we recommend using metal multi-tooth screws for the interior installation. |
| Base material | Stainless steel |
| Weight/packaging unit | 116.3 kg |
| EAN | 4028177300743 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 8455600?
Proax is an authorized distributor of Rittal 8455600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
