8453600
Official DistributorBy Rittal
SKU
RIT8453600
Weight
174.9 kg
This item is ineligible for free shipping due to its size/weight.

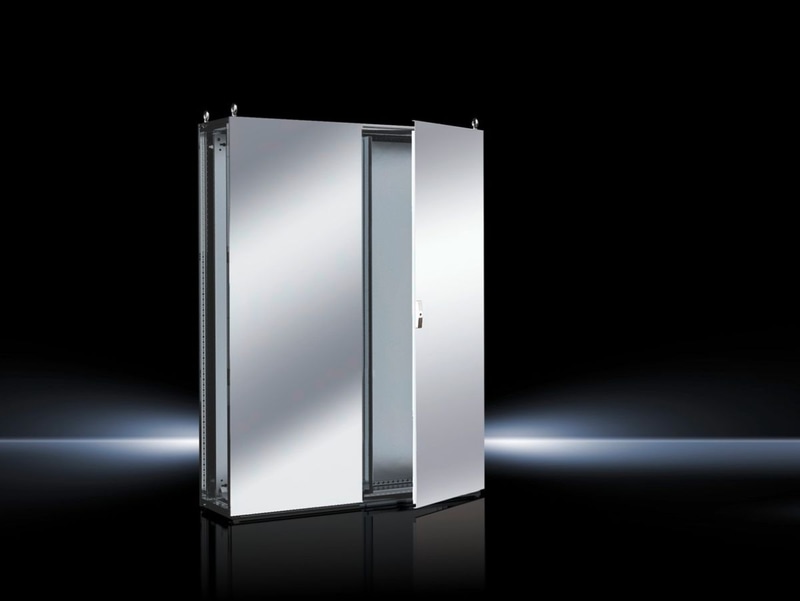

TS Bayed enclosure system, WHD: 1200x1800x500 mm, Stainless steel 1.4301, with mounting plate, two doors at the front
Supply includes
Enclosure frame
Door(s)
Right-hand door catch on single-door enclosures may be swapped to the left
Roof plate
Base Plates
Rear panel
Mounting plate
4 eyebolts
Lock: 3 mm double-bit
2 TS punched rails, 18 x 38 mm
Technical Specifications
Dimensions
| Width | 1,200 mm |
| Height | 1,800 mm |
| Depth | 500 mm |
Material
| Enclosure frame | Stainless steel 1.4301 (AISI 304), 1.5 mm |
| Roof | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Door | Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed |
| Rear panel | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Base plates | Stainless steel 1.4301 (AISI 304), 1.5 mm |
| Mounting plate | Carbon steel, 3.0 mm |
Mounting plate
| Width | 1,099 mm |
| Height | 1,696 mm |
Surface finish
| Enclosure frame and base plates | Uncoated |
| Door, roof and rear panel | Exterior brushed, grain size 400 |
| Mounting plate | Zinc-plated |
| Number of doors | 2 |
| Protection category IP to IEC 60 529 | IP 55 |
| Standard | NEMA 12 |
| IK code | IK09 |
| Note | Due to the hardness of the material, we recommend using metal multi-tooth screws for the interior installation. |
| Base material | Stainless steel |
| Weight/packaging unit | 174.9 kg |
| EAN | 4028177300767 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
