8450680
Official DistributorBy Rittal
SKU
RIT8450680
Weight
128.9 kg
This item is ineligible for free shipping due to its size/weight.

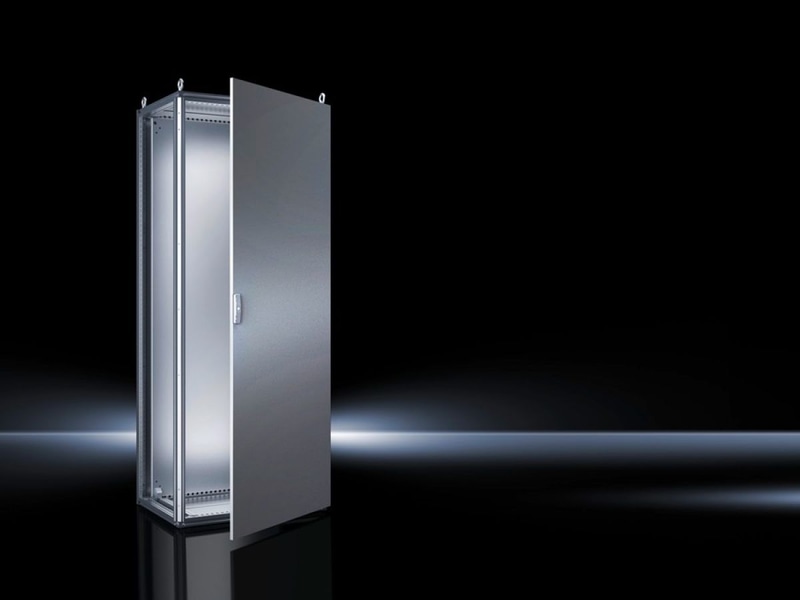

TS Bayed enclosure system, WHD: 800x2000x600 mm, stainless steel, 1.4301, IP66 / NEMA 4x, with mounting plate, sheet steel, single door at front
Supply includes
Enclosure frame
Door(s)
Door catch on right, may be swapped to the left
Roof
Base, solid
Rear panel
Mounting plate
4 eyebolts
Lock: 3 mm double-bit
2 TS punched rails, 18 x 38 mm
Accessory kit for side panels for upgrading to IP 66
2 support strips fitted in the enclosure depth
Technical Specifications
Dimensions
| Width | 800 mm |
| Height | 2,000 mm |
| Depth | 600 mm |
Material
| Enclosure frame | Stainless steel 1.4301 (AISI 304), 1.5 mm |
| Roof | Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed |
| Door | Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed |
| Rear panel | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Base | Stainless steel 1.4301 (AISI 304), 3.0 mm |
| Mounting plate | Carbon steel, 3.0 mm |
Mounting plate
| Width | 699 mm |
| Height | 1,896 mm |
Surface finish
| Enclosure frame and base plates | Uncoated |
| Door, roof and rear panel | Exterior brushed, grain size 400 |
| Mounting plate | Zinc-plated |
| Number of doors | 1 |
| Protection category IP to IEC 60 529 | IP 66 |
| Standard | NEMA 4X |
| IK code | IK09 |
| Note | Due to the hardness of the material, we recommend using metal multi-tooth screws for the interior installation. |
| Base material | Stainless steel |
| Weight/packaging unit | 128.9 kg |
| EAN | 4028177602526 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
