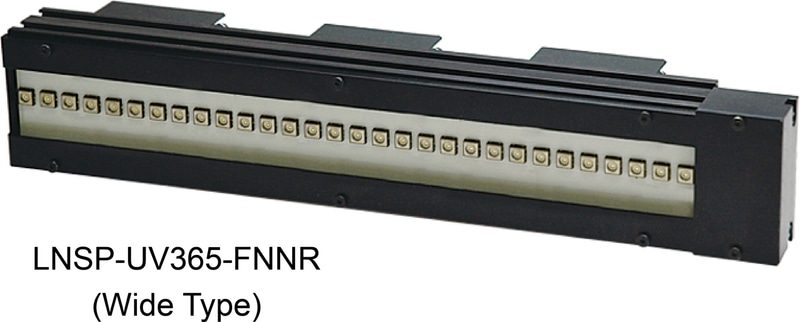

Technical Specifications
| LED color | Ultraviolet |
| Peak wavelength | 365 nm typ. |
| Dimensions | W 236.3 x D 62 x H 74.6 mm |
| Power consumption | 61W max. (Including power consumption for fans) |
| Cable Length | 300 mm |
| Case Material | Aluminum alloy, steel sheet |
| Input connector | Metal connector PRC04-12A26S-37M18 (Tajimi Electronics co.,ltd) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Mod risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling Method | Forced cooling |
| Weight | 1,100 g max. |
| Accessories | User Manual, Radiation aperture seal, UV DANGER Seal, Nuts for frame x 4, FG line (2 m), M3 mounting screw |
Why Proax for CCS LNSP-200UV365-FNNR?
Proax is the authorized distributor of CCS LNSP-200UV365-FNNR. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | LNSP200UV365FNNR |
| Pack Size | 1 |
