7000625
Official DistributorBy Rittal
SKU
RIT7000625
Weight
4.77 kg

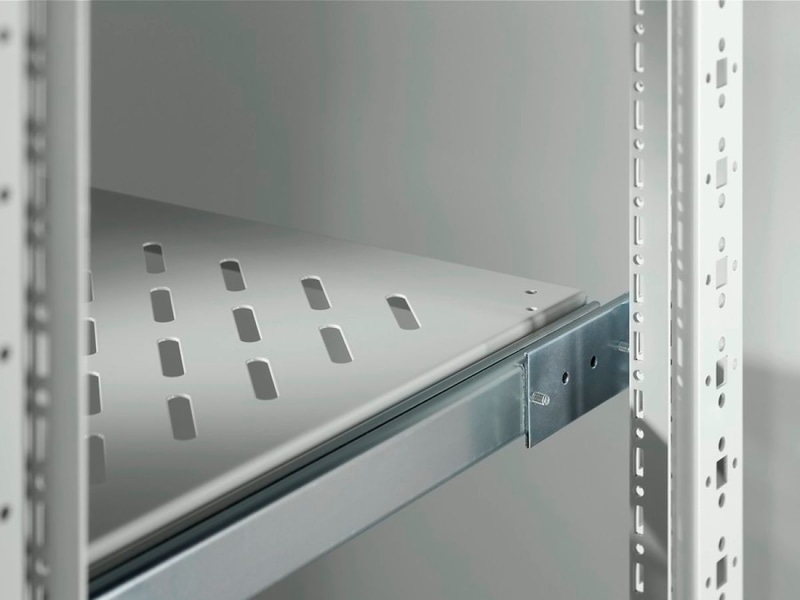

DK Component shelf, WxD: 482,6x500 mm, 50 kg, distance between levels: 495 mm, depth-variable, For 482.6 mm (19") system punchings, RAL 7035
Supply includes
Component shelf, vented
Telescopic slides with mounting kit
Technical Specifications
Contact surface
| Depth | 500 mm |
| Width | 409 mm |
Dimensions
| Width | 482.6 mm |
| Depth | 500 mm |
Surface finish
| Base | Spray-finished |
| Mounting kit/telescopic slides | Zinc-plated |
| Benefits | Depth-variable for adjusting to 19" levels in 25 mm hole pattern |
| Material | Base: Carbon steel |
| Color | RAL 7035 |
| Load capacity static | 500 N |
| Distance between levels | 395 ‐ 645 mm |
| Weight/packaging unit | 4.77 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177553149 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Why Proax for Rittal 7000625?
Proax is an authorized distributor of Rittal 7000625 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
