6340100
Official DistributorBy Rittal
SKU
RIT6340100
Weight
3.8 kg

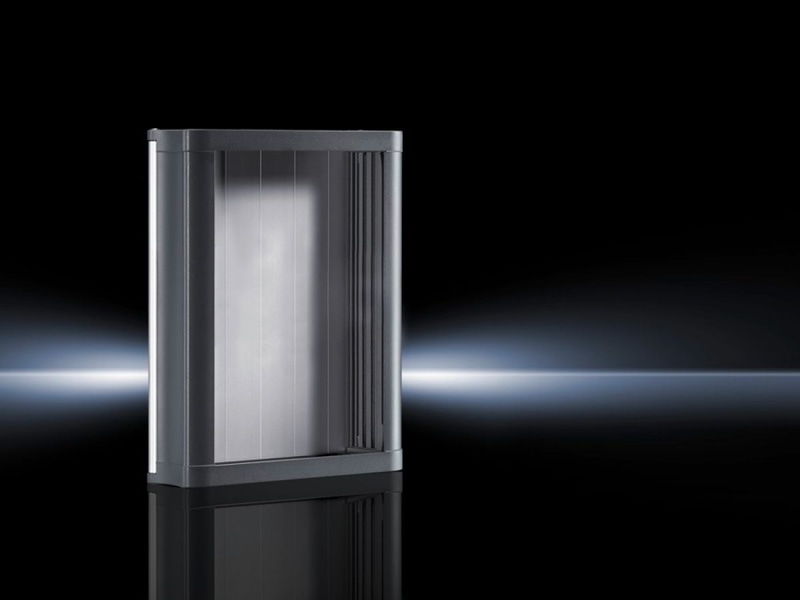

CP Compact Panel, WHD: 241x388x87 mm, aluminum, for front panel WH 178x350 mm
Supply includes
Roof tray
Base tray
Rear panel
Side parts
Screw cover
Seal and screw clamp
Technical Specifications
Dimensions
| Width | 241 mm |
| Height | 388 mm |
| Depth | 87 mm |
Material
| Roof tray, base tray | die-cast zinc |
| Rear wall | Aluminum |
| Side parts | Extruded aluminum section |
| Screw cover | Plastic |
Surface finish
| Roof tray, base tray, side parts | Powder-coated |
| Rear panel | Natural anodized |
| Version | With support arm connection 90 x 71 mm for CP 40, steel |
| Color | RAL 7024 |
| Protection category IP to IEC 60 529 | IP 65 |
| Protection category NEMA | NEMA 12 |
| Suitable for front panel width | 178 mm |
| Suitable for front panel height | 350 mm |
| Base material | Aluminum |
| Weight/packaging unit | 3.8 kg |
| EAN | 4028177382695 |
| ETIM 7.0 | EC002504 |
| ECLASS 8.0 | 27180505 |
Why Proax for Rittal 6340100?
Proax is an authorized distributor of Rittal 6340100 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
