6315650
Official DistributorBy Rittal

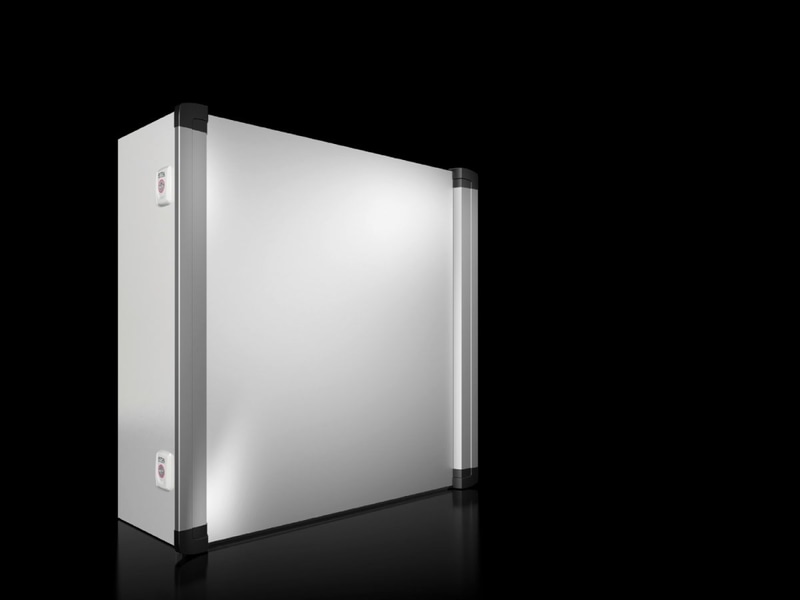

AX Operating housing with handle strips, WHD: 600x600x210 mm, sheet steel, aluminium handle strips, servicing access from the front
Supply includes
Housing with cut-out and reinforcement for support arm connection Ø 130 mm
Front with maximum cut-out, covered with easily machinable 3 mm aluminum front panel
Side handle strips with cover caps
Integral interior mounting bracket with system punchings
Cam lock with 3 mm double-bit insert
AX compact control cabinet Operating housing AX with handle strips
Color
| Housing and door | RAL 7035 |
| Handle strip | Natural anodized |
| Front panel | Natural anodized. |
| Cover caps | Similar to RAL 7024 |
Dimensions
| Width | 600 mm |
| Height | 600 mm |
| Depth | 210 mm |
Material
| Housing | Carbon steel |
| Door | Carbon steel, all-round foamed-in PU seal |
| Front panel | Aluminum |
| Cover caps | Plastic |
Surface finish
| Housing and door | Dipcoat primed, powder-coated on the outside, textured paint |
| Handle strip | Natural anodized |
| Front panel | Natural anodized. |
| Protection category NEMA | NEMA 1, 12 |
| Type rating according to UL 50E | Type 1, 12 |
| Servicing access version | From the front |
| IK code | IK08 |
| Note | The support arm connection and door catch may be swapped over by rotating the enclosure |
| Base material | Carbon steel |
| Note on Model No. | Compatible mounting plate 5051.378 with shipping bag 5051.300 |
| Weight/packaging unit | 22.8 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177923188 |
| ETIM 7.0 | EC002504 |
| ECLASS 8.0 | 27180505 |
Why Proax for Rittal 6315650?
Proax is an authorized distributor of Rittal 6315650 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
Operating housing in a stylish / slimline design made from extruded aluminium sections for effective heat dissipation, with support arm cut-out Ø 130 mm or rectangular 120 x 65 mm to fit support arm system CP 60 / 120 / 180, service access from the front or rear, uniform all-round mounting channels for individual installation of accessories without machining, protection category IP 65. For the North American market, we have enhanced our product offerings to include the below additional size options.
AX Operating housing with handle strips, WHD: 600x600x210 mm, sheet steel, aluminium handle strips, servicing access from the front
