6315300
Official DistributorBy Rittal

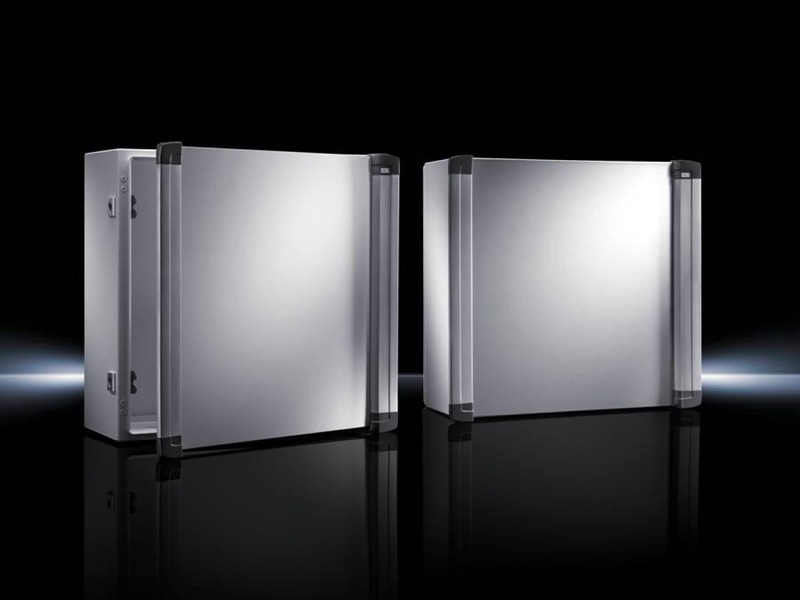

CP Operating housing with handle strips, WHD: 380x380x210 mm, Sheet steel, handle strips made of aluminum, Servicing access from the front
Supply includes
Housing with cut-out and reinforcement for support arm connection Ø 130 mm
Front with maximum cut-out, covered with easily machinable 3 mm aluminum front panel
Side handle strips and cover caps
Cam lock with 3 mm double-bit insert
Integral interior mounting bracket with TS system punchings
Color
| Housing and door | RAL 7035 |
| Handle strip | Natural anodized |
| Front panel | Natural anodized. |
| Cover caps | Similar to RAL 7024 |
Dimensions
| Width | 380 mm |
| Height | 380 mm |
| Depth | 210 mm |
Lock
| Lock version | Sickle-shaped locking nose |
| Number locks | 1 |
| Lock Insert | 3 mm double-bit |
Material
| Housing and door | Carbon steel |
| Handle strips | Aluminum |
| Front panel | Aluminum |
| Cover caps | Plastic |
Surface finish
| Housing and door | Dipcoat primed, powder-coated on the outside, textured paint |
| Handle strip | Natural anodized |
| Front panel | Natural anodized. |
| Protection category IP to IEC 60 529 | IP 55 |
| Servicing access version | From the front |
| Note | The support arm connection and door catch may be swapped over by rotating the enclosure |
| Base material | Aluminum |
| Note on Model No. | Compatible mounting plate 5050.453 with shipping bag 5050.507 |
| Weight/packaging unit | 9.8 kg |
| EAN | 4028177693951 |
| ETIM 7.0 | EC002504 |
| ECLASS 8.0 | 27180505 |
Why Proax for Rittal 6315300?
Proax is an authorized distributor of Rittal 6315300 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
Operating housing in a stylish / slimline design made from extruded aluminium sections for effective heat dissipation, with support arm cut-out Ø 130 mm or rectangular 120 x 65 mm to fit support arm system CP 60 / 120 / 180, service access from the front or rear, uniform all-round mounting channels for individual installation of accessories without machining, protection category IP 65. For the North American market, we have enhanced our product offerings to include the below additional size options.
