Official DistributorBy Rittal
SKU
Weight
3.3 kg

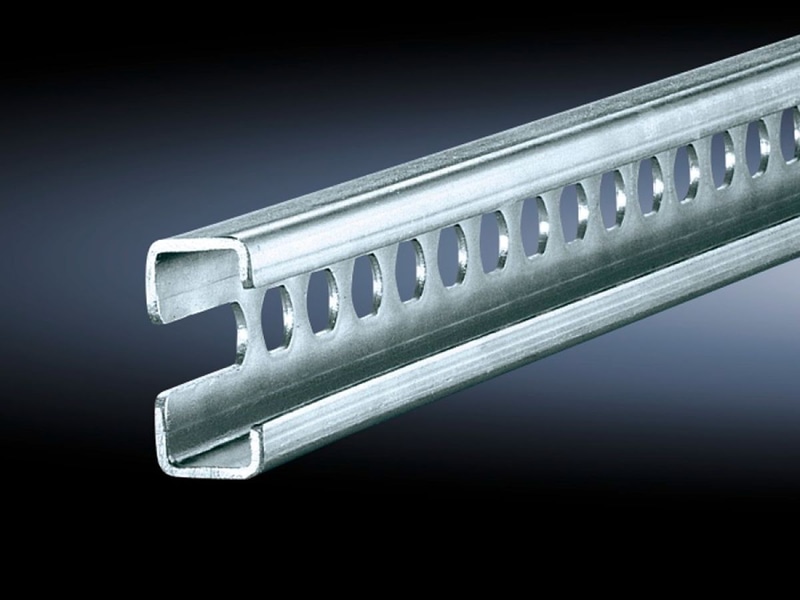

SZ C rail 30/15 to EN 60 715, for TS, SE, for W/D: 800 mm, L: 755 mm
C rails 30/15 to EN 60 715 for VX, TS, SE
Mounted directly on the horizontal enclosure profile or base configuration rail for CM, on the vertical enclosure profile using additional fastening components.
Technical Specifications
Suitable for
| Enclosure Type | VX |
| To fit width/depth | 800 mm |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Length | 755 mm |
| Installation options | On the inner mounting level, on VX enclosure profile |
| Packaging unit | 6 pc(s). |
| Weight/packaging unit | 3.3 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177114616 |
| ETIM 7.0 | EC000386 |
| ECLASS 8.0 | 27400602 |
