Official DistributorBy ABB
SKU
MPN
GHV2501902R0002

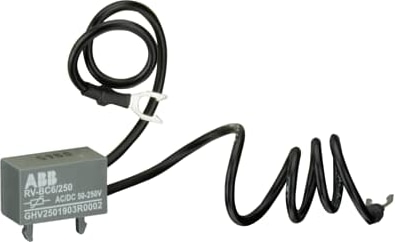

The RV-BC6/250 is a varistor surge suppressor for contactor coils. Designed to reduce the maximum overvoltage peak value and to limit or even completely eliminate the high pre-damping voltage frequencies for a rated control circuit voltage between 24 ... 60 V. The surge suppressor is equipt with screw terminals and can be mounted on the DC-operated B6 and B7 mini contactor.
Documents
Technical Specifications
Dimensions
| Product Net Width | 21 mm |
| Product Net Height | 11.5 mm |
| Product Net Depth / Length | 12 mm |
| Product Net Weight | 0.005 kg |
Technical
| Rated Frequency (f) | Control Circuit DC |
| Rated Insulation Voltage (Ui) | 690 V |
| Degree of Protection | IP20 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1 |
| Rated Control Circuit Voltage (Uc) | DC Operation 24 ... 60 V DC |
| Suitable for | BC6 |
| Suitable for | BC7 |
| Suitable for | KC6 |
| Suitable for | TBC7 |
| Suitable for | TKC6 |
| Suitable for | VBC6 |
| Suitable for | VBC6A |
| Suitable for | VBC7 |
| Suitable for | VBC7A |
| Suitable for Product Class | Mini Contactors |
Why Proax for ABB RV-BC6/60?
Proax is an authorized distributor of ABB RV-BC6/60 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | RVBC660 |
| Pack Size | 1 |
