3431000
Official DistributorBy Rittal
SKU
RIT3431000
Weight
0.451 kg
This product is Not Cancellable/Not Returnable

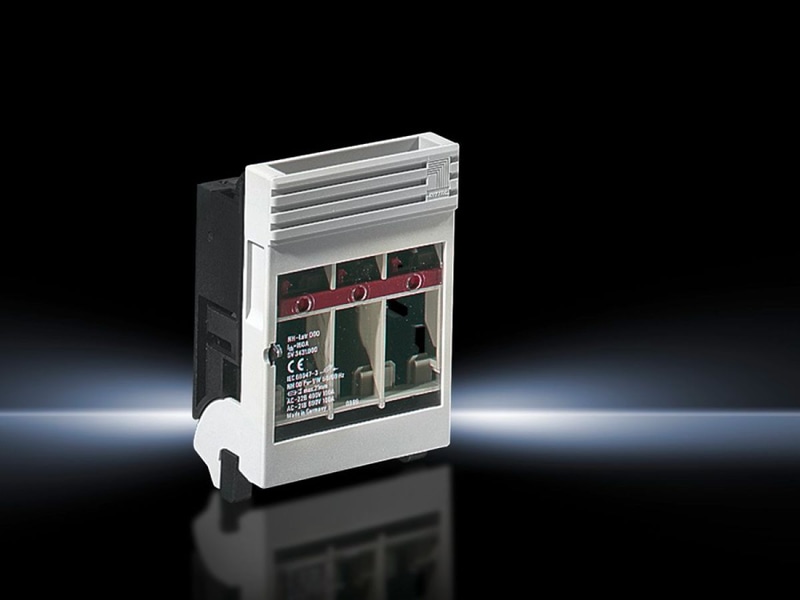

SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, for mounting plate assembly
Technical Specifications
Clamping area for laminated copper bars
| Width | 10 mm |
| Height | 10 mm |
Color
| Chassis | RAL 9011 |
| Cover | RAL 7035 |
Dimensions
| Width | 89 mm |
| Height | 141.5 mm |
Material
| Contact tracks | Silver-plated hard copper |
| for mounting plate assembly | Yes |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Box terminal |
| Rated operating current max. | 100 A |
| For NH size | 000 |
| Test specification | IEC 60 947-3 |
| Connection for round conductor cross-sections | 1.5 ‐ 50 mm² |
| Rated operating voltage | 690 V, 3~ |
| Number of Poles | 3-pole |
| Weight/packaging unit | 0.451 kg |
| Copper weight (kg per piece) | 0.15 |
| Customs tariff number | 85369095 |
| EAN | 4028177042391 |
| ETIM 7.0 | EC001040 |
| ECLASS 8.0 | 27371401 |
Why Proax for Rittal 3431000?
Proax is an authorized distributor of Rittal 3431000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
