Official DistributorBy Rittal
SKU
Weight
12.7 kg
This product is Not Cancellable/Not Returnable
Series Door-mounted fan

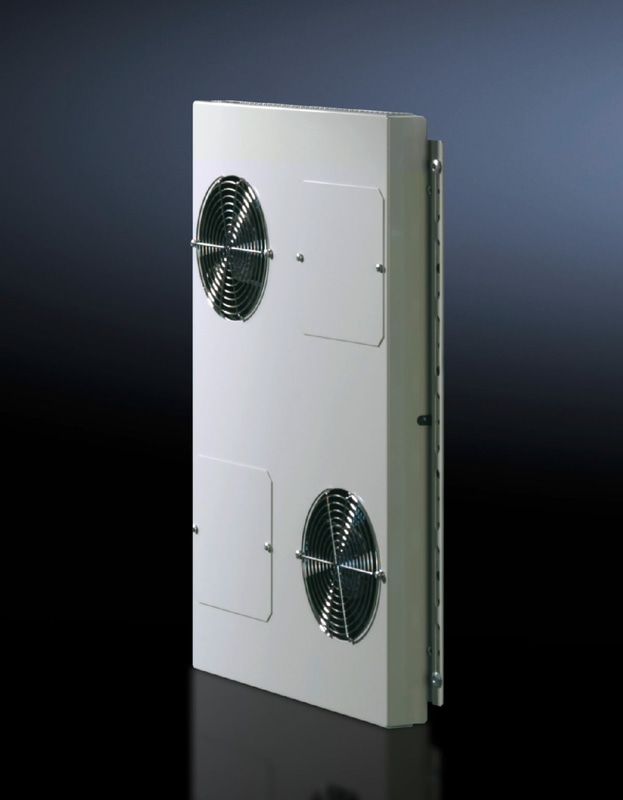

SK Door-mounted fan, for horizontal air routing, for mounting on the tubular door frame, To fit enclosure width: 800 mm, WHD: 693x606x64,5 mm
Supply includes
2 fans
Connection cable (2.5 m)
Assembly components
Door-mounted fan
To mount on server rack tubular door frame (front or rear door) and to facilitate horizontal ventilation of IT equipment.
Technical Specifications
Dimensions
| Width | 693 mm |
| Height | 606 mm |
| Depth | 64.5 mm |
Rated current max.
| At 50 Hz | 0.38 A |
| At 60 Hz | 0.36 A |
Rated power Pel
| At 50 Hz | 70 W |
| At 60 Hz | 70 W |
Suitable for
| Enclosure Type | TS 8 Server Enclosures |
| Width | 800 mm |
| Benefits | By adding two fan expansion kits, the air flow rate can be increased to 1200 m³/h. |
| Color | RAL 7035 |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Note | Only for mounting on the tubular door frame! |
| Noise pressure level | 55 dB(A) |
| Operating temperature range | 20 °C...55 °C |
| Air throughput (unimpeded air flow) | 600 m³/h |
| Weight/packaging unit | 12.7 kg |
| Customs tariff number | 84149000 |
| EAN | 4028177309371 |
| ETIM 7.0 | EC000320 |
| ECLASS 8.0 | 27180716 |
Why Proax for Rittal 3165830?
Proax is an authorized distributor of Rittal 3165830 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
