Official DistributorBy Rittal
SKU
Weight
30 kg
This product is Not Cancellable/Not Returnable
This product has been discontinued

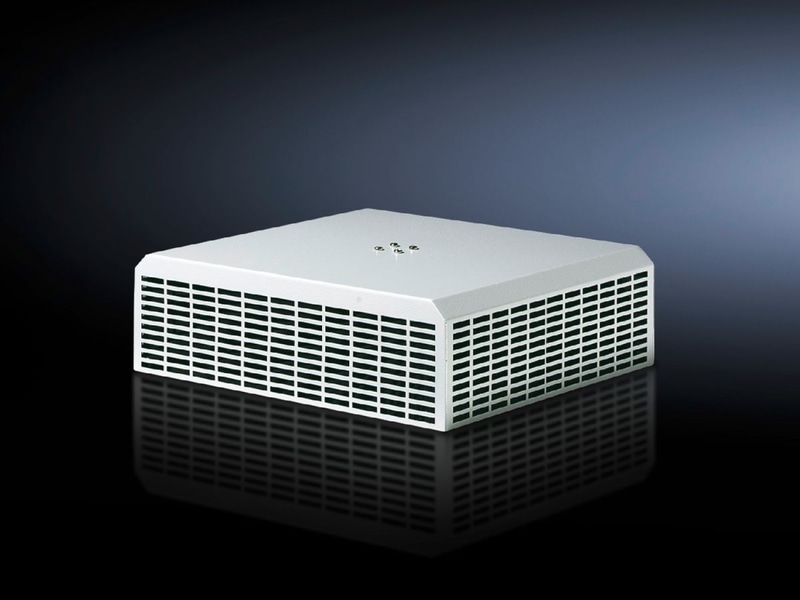

SK Roof-mounted fan, with roof plate, for TS and TS IT in the office sector, WHD: 800x240x800 mm, 1500 m³/h,
Supply includes
Roof-Mounted Fans
Assembly components
Technical Specifications
Dimensions
| Width | 800 mm |
| Height | 240 mm |
| Depth | 800 mm |
Rated current max.
| At 50 Hz | 0.3 A |
| At 60 Hz | 0.35 A |
| Benefits | Easy assembly, the roof plate variant eliminates the need to create mounting cut-outs |
| Material | Carbon steel, spray finished |
| Color | RAL 7035 |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Protection category IP to IEC 60 529 | Internal circuit, IP 54 |
| Note | Reduction of the specified air flow to 800 m³/h at 40 Pa counter-pressure using two ventilated base/plinth trim panels |
| Operating temperature range | 20 °C...55 °C |
| Weight/packaging unit | 30 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177243248 |
| ETIM 7.0 | EC000320 |
| ECLASS 8.0 | 27180716 |
Why Proax for Rittal 3164620?
Proax is an authorized distributor of Rittal 3164620 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
