2562500
Official DistributorBy Rittal
SKU
RIT2562500
Weight
0.62 kg

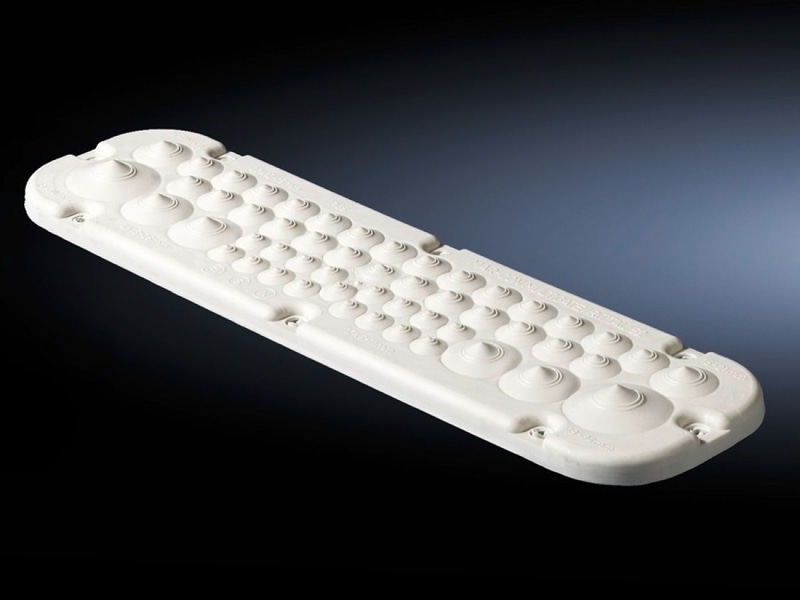

SZ Plastic cable gland plate, with membranes, WD: 339x149 mm, size: 4
Technical Specifications
Dimensions
| Width | 339 mm |
| Depth | 149 mm |
| Material | Plastic to UL 94-V0 Halogen-free |
| Color | Similar to RAL 7035 |
| Note | The assignment of the flange plate size can be found on the respective housings |
| Gland plate | Size: 4 |
| Protection category IP to EN 60 529 | IP 65 |
| Number cable entries and diameter | 24 x 7-12 |
| Weight/packaging unit | 0.62 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177325609 |
| ETIM 7.0 | EC000211 |
| ECLASS 8.0 | 27142421 |
Why Proax for Rittal 2562500?
Proax is an authorized distributor of Rittal 2562500 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
