Official DistributorBy Rittal
SKU
Weight
0.62 kg
This product is Not Cancellable/Not Returnable

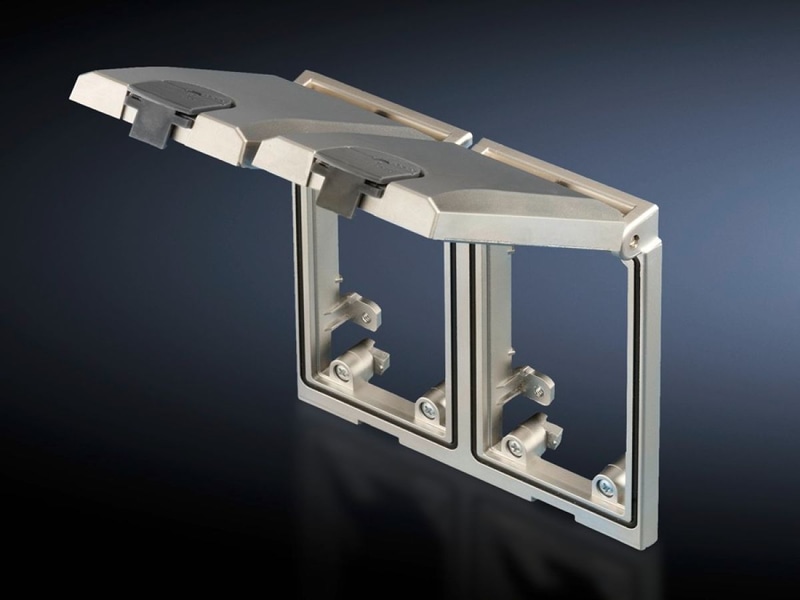

SZ Interface flap, modular, mounting frame, double, with metal flap
Mounting frame, interface flap, modular
For universal use where rapid access to interfaces and outlets is needed, the housing remains closed.
Technical Specifications
Color
| Lock | RAL 7024 |
| Screw terminals | yellow (RAL 1016) |
Dimensions
| Width | 130 mm |
| Height | 120 mm |
Material
| Lock | Polycarbonate |
| Mounting frame and metal flap | Fine die-cast zinc |
Mounting cut-out
| Width of opening | 117 mm |
| Cut-out height | 91 mm |
| Version | Mounting frame, double, with metal flap |
| Function principle | The cover on the mounting frame can be opened at various angles from 90° to 180° |
| Surface finish | Mounting frame and metal flap: Matt nickel-plated |
| Installation options | In small and compact enclosures as a programming interface for controllers |
| Protection category IP to IEC 60 529 | IP 65 with sealed flap and proper assembly |
| Weight/packaging unit | 0.62 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177490680 |
| ETIM 7.0 | EC002625 |
| ECLASS 8.0 | 27189234 |
Why Proax for Rittal 2482330?
Proax is an authorized distributor of Rittal 2482330 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
