SKU
Weight
20.32 kg

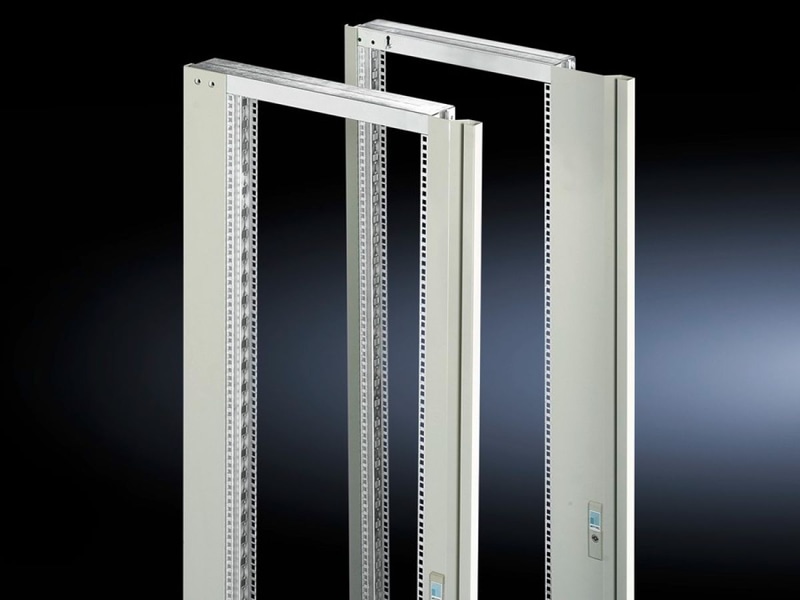

SR Swing frame, large, with trim panel, for TS, VX SE, for W: 800 mm, (36 U), Mounting position centre
Supply includes
Locking rod system with double-bit lock insert
Material for attaching
Pivoting frame, large, with trim panel for TS, SE, 800 mm wide enclosures
For 800 mm wide enclosures, 22 - 45 U, with trim panel to mount 482.6 mm (19") rack-mounted equipment.
Technical Specifications
Suitable for
| Enclosure Type | TS |
| Width | = 800 mm |
| Height | ≥ 1,800 mm |
Surface finish
| Frame | Zinc-plated |
| Panel | Spray-finished |
| Version | 19" level, center |
| Material | Carbon steel |
| Color | RAL 7035 |
| Installation options | In TS/SE with 180° opening angle |
| Mounting tip | Depending on the installation situation TS punched sections with mounting flange, 23 x 73 mm, or TS punched sections with mounting flange, 17 x 73 mm are required |
| Note | see "Technical Details" for other expansion options |
| Height units | 36 U |
| Weight/packaging unit | 20.32 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177165182 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Why Proax for Rittal 2338235?
Proax is an authorized distributor of Rittal 2338235 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
