Official DistributorBy Rittal
SKU
Weight
4 kg

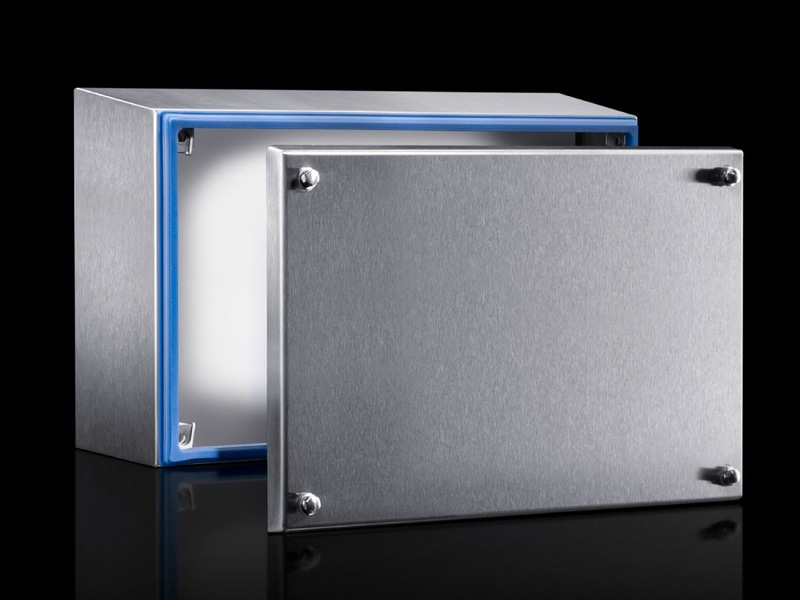

HD Terminal box, WHD: 300x200x120 mm, Stainless steel 1.4301, with cover and silicone seal
Supply includes
Housing of all-round solid construction
Cover
Installation bracket (pre-assembled)
Seal and quick-release bolt (supplied loose)
Hygienic Design Junction box HD
Enclosure solution tailored to the requirements of the food and beverage industry. All-round gap-free silicone seal between enclosure and cover. Hygiene-compliant quick-release hexagon fastener
Technical Specifications
Dimensions
| Width front | 300 mm |
| Width (rear) | 327 mm |
| Height, front | 200 mm |
| Height rear | 227 mm |
| Depth | 120 mm |
Material
| Housing and cover | Stainless steel 1.4301 (AISI 304), 1.5 mm |
| Installation bracket | Carbon steel, zinc-plated, 2.0 mm |
| Screw plug | Stainless steel |
| Seal | Silicone, compliant with FDA Guideline 21 CFR 177.2600 |
Surface finish
| Housing and cover | Brushed, grain 400, peak-to-valley height < 0.8 µm |
| Seal | Blue, dyed (RAL 5010) |
| Version | Enclosure angled forwards by 3° |
| IK code | IK08 |
| Base material | Stainless steel |
| Protection category IP to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 13 |
| Type rating according to UL 50E | Type 1, 3, 3X, 4, 4X, 12, 13 |
| Weight/packaging unit | 4 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177639768 |
| ETIM 7.0 | EC002713 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1674600?
Proax is an authorized distributor of Rittal 1674600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
