Official DistributorBy Rittal
SKU
Weight
71 kg

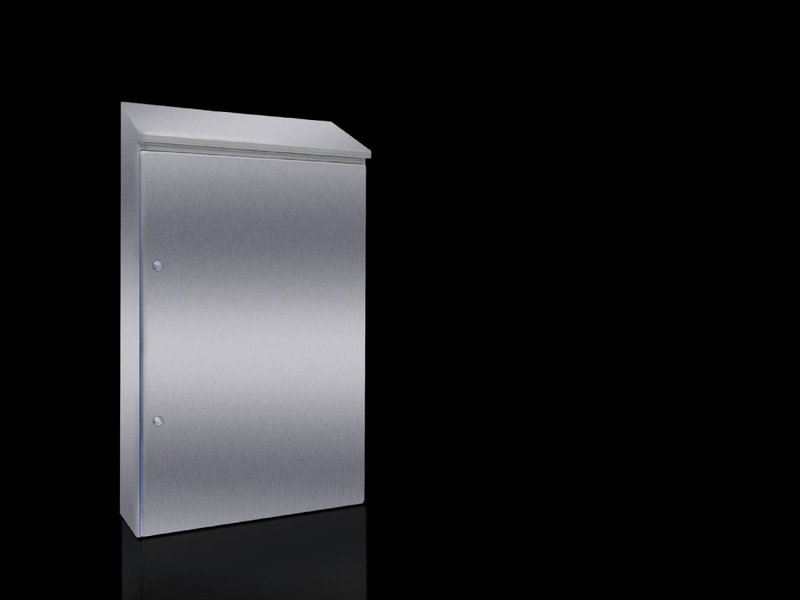

HD Compact enclosure, WHD: 810x1250(H1)x1421(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
Supply includes
Housing of all-round solid construction
Door with fitted seal
Door catch on right, may be swapped to the left
Mounting plate
Hygienic Design Compact enclosure HD, single-door
Enclosure solution tailored to the requirements of the food and beverage industry. Roof angled forwards by 30°. Seal dyed blue to clearly distinguish it from foodstuffs
Technical Specifications
Dimensions
| Width | 810 mm |
| Height, front | 1,250 mm |
| Height rear | 1,421 mm |
| Depth | 300 mm |
Material
| Housing and door | Stainless steel 1.4301 (AISI 304) |
| Mounting plate | Carbon steel |
| HD lock inserts | Stainless steel 1.4404 (AISI 316L) |
| Seal | Silicone, compliant with FDA Guideline 21 CFR 177.2600 |
Mounting plate
| Width | 745 mm |
| Height | 1,175 mm |
Surface finish
| Housing and door | Brushed, grain 400, peak-to-valley height < 0.8 µm |
| Mounting plate | Zinc-plated |
| Seal | Blue, dyed (RAL 5010) |
| Version | Roof slope 30° towards the front |
| Product modification | From June 2020, the compact enclosure HD, single-door, comes with the new compact enclosure AX mounting plate. |
| Door opening angle | 125° |
| No. of locks | 2 |
| IK code | IK08 |
| Base material | Stainless steel |
| Protection category IP to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 13 |
| Type rating according to UL 50E | Type 1, 3, 3X, 4, 4X, 12, 13 |
| Weight/packaging unit | 71 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177567658 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1317600?
Proax is an authorized distributor of Rittal 1317600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
