1581000
Official DistributorBy Rittal
SKU
RIT1581000
Weight
0.6 kg
This product is Not Cancellable/Not Returnable

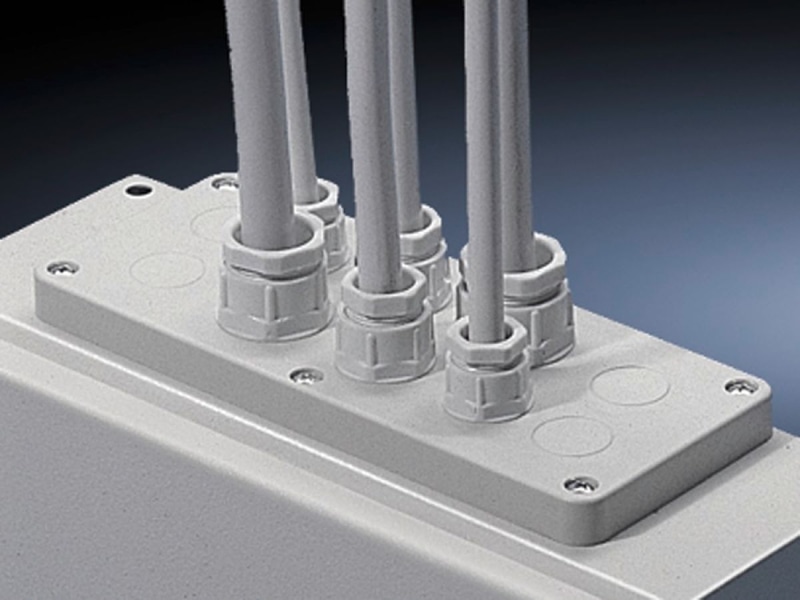

KL Plastic cable gland plate, with PG knock-outs, WD: 220x90 mm, size: 2, PG knockouts: 13.5
Technical Specifications
Dimensions
| Width | 220 mm |
| Depth | 90 mm |
| Material | ABS |
| Color | RAL 7035 |
| Note | The assignment of the flange plate size can be found on the respective housings |
| No. of metric knockouts | 12 |
| Number x PG diameter | 12 x 13.5 |
| Suitable for | Enclosure type: KL |
| Gland plate | Size: 2 |
| Operating temperature range | -40 °C...70 °C |
| Protection category IP to EN 60 529 | IP 55 if correctly installed |
| Packaging unit | 5 pc(s). |
| Weight/packaging unit | 0.6 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177010888 |
| ETIM 7.0 | EC000211 |
| ECLASS 8.0 | 27142421 |
