Official DistributorBy Rittal
SKU
Weight
23.5 kg
This product has been discontinued

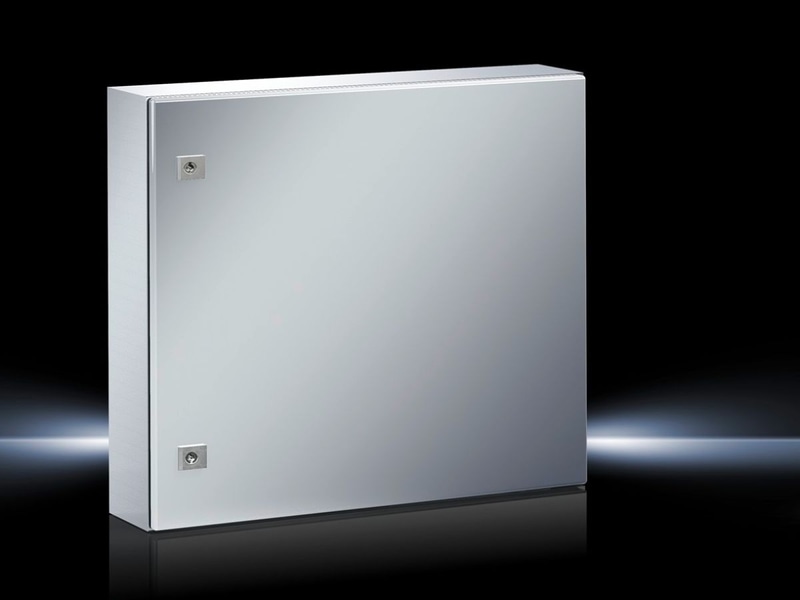

AE Compact enclosure, WHD: 600x600x210 mm, Stainless steel 1.4301, with mounting plate, single-door, with two cam locks
Supply includes
Housing with door(s)
Mounting plate
Lock: 3 mm double-bit
Compact enclosures AE Stainless steel
Compact enclosure AE in stainless steel including mounting plate.
Technical Specifications
Dimensions
| Width | 600 mm |
| Height | 600 mm |
| Depth | 210 mm |
Lock
| Lock version | Cam |
| Number locks | 2 |
| Lock Insert | 3 mm double-bit |
| Material lock | Die-cast zinc, nickel-plated |
Material
| Housing | Stainless steel |
| Door | Stainless steel, all-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Mounting plate
| Width | 549 mm |
| Height | 570 mm |
Surface finish
| Housing and door | Brushed, grain 400, peak-to-valley height < 0.8 µm |
| Mounting plate | Zinc-plated |
| Product modification | Starting in August 2016, the surface grinding is changing from 240 grain to 400 grain. The visually finer grinding pattern will enhance the cleaning properties of the housing. |
| Protection category NEMA | NEMA 4X |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Number of doors | 1 |
| No. of locks | 2 |
| Base material | Stainless steel |
| Weight/packaging unit | 23.5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177000438 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1010600?
Proax is an authorized distributor of Rittal 1010600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
