5032442
Official DistributorSKU
PHX5032442
MPN
SSMK 96X30
Weight
0.01 kg
Series SSMK
SSMK 96X30 - Control cabinet marker

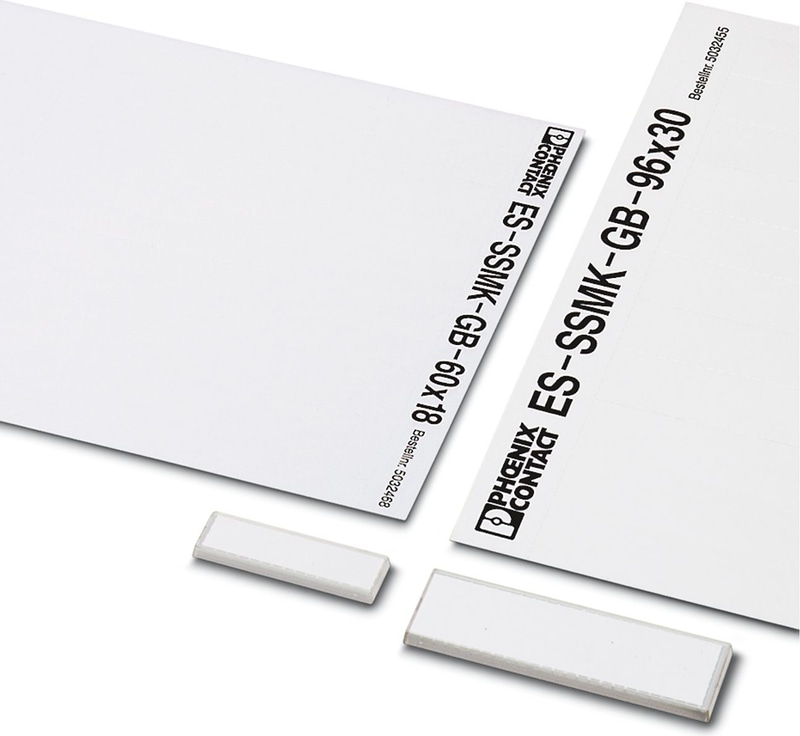

Control cabinet marker, size: 96 x 30 mm, lettering field: 92 x 26 mm, 2 mounting holes M3, including 1 x ES-SSMK-GB 96 x 30
- The ES‑SSMK ... insert strips can be labeled using the CMS‑P1‑PLOTTER and the CMS‑P1‑PAD magazine
- The labeling is resistant to external influences
- The base carrier has two fixing holes so that it can be screwed on
- Control cabinet markers consisting of a transparent cap and base carrier
- Once labeled, the insert label is inserted in the cap and this is then snapped onto the base carrier
Technical Specifications
Notes
| General | Can be labeled with CMS |
Dimensions
| Width | 96 mm |
| Length | 30 mm |
| Drill hole spacing | 75.00 mm |
| Hole diameter | 3.50 mm |
Material specifications
| Color | transparent/white |
| Material | PC |
| Flammability rating according to UL 94 | V2 |
| Base element material | PC |
| Components | free from silicone and halogen |
Technical data
| Drill hole spacing | 75.00 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 115 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
Mounting
| Mounting Type | screw, rivet |
Accessories
Why Proax for Phoenix Contact 5032442?
Proax is an authorized distributor of Phoenix Contact 5032442 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
