Official DistributorSKU
MPN
WT-HF 2,5X98 BK
Weight
0 kg
This product is Not Cancellable/Not Returnable
Series WT-HF

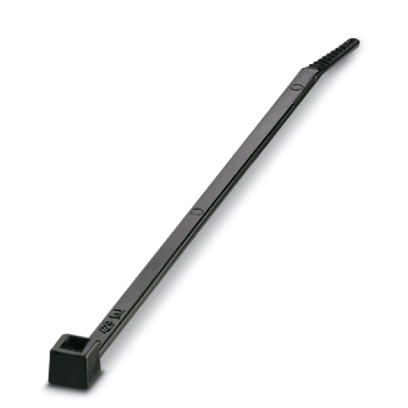

Cable tie - WT-HF 2,5X98 BK
Cable binders for quick and secure bundling, standard version
Technical Specifications
Dimensions
| Length (b) | 98 mm |
| Width (a) | 2.5 mm |
| Cable Diameter | 1 mm ... 21 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -10 °C ... 60 °C |
| Optimum ambient temperature (storage/transport) | 23 °C 50 % Polyamide 6.6 has pronounced hygroscopic properties. It absorbs or releases water in accordance with the level of humidity within its environment. Its properties are ideal when the percentage of water is 2 - 3%. The packaging, which is tailored specifically to the product concerned, contains the optimum level of moisture.To ensure that the ideal properties are maintained, the following points should be observed during storage: Keep product stored inside sealed original packaging, carry out any product processing soon after breaking open the packaging, avoid direct sunlight, avoid direct heat. |
| Short-term temperature | 110 °C |
| Resistance to UV radiation | no |
General
| Color | black |
| Components | free from silicone and halogen |
| Material | PA 6.6 |
| Flammability rating according to UL 94 | V2 |
| Tensile strength | 80 N |
Standards and Regulations
| Resistance to UV radiation | no |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
Why Proax for Phoenix Contact 3240733?
Proax is an authorized distributor of Phoenix Contact 3240733 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
