3240532
Official DistributorSKU
PHX3240532
MPN
C-BCSI 2,5/9X2,8
Weight
0.001 kg
This product is Not Cancellable/Not Returnable
Series C-BCSI

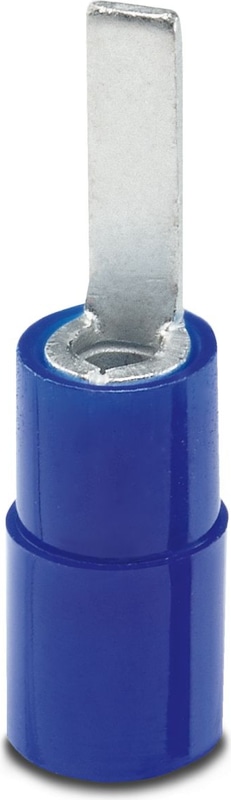

C-BCSI 2,5/9X2,8 - Cable lug
Flat pin cable lug, blue, 1.5 - 2.5 mm2, pin dimensions: 20 x 2.8 mm
- Hard-soldered crimping zone for maximum conductor pull-out forces in connection with CRIMPFOX RCI... pliers
- Easy and reliable conductor entry thanks to 'EASY ENTRY'
- Halogen-free
- Electrogalvanized
Technical Specifications
Electrical properties
| Fuse | no |
Dimensions
| Width | 2.8 mm |
| Length of the insulating material sleeve | 11 mm |
| Length contact range | 9 mm |
| Maximum stripping length | 8 mm |
| Min. material thickness | 0.8 mm |
| Inner dimensions of the insulating collar | 4.5 mm |
Material specifications
| Color | blue |
| Material | Cu |
| Flammability rating according to UL 94 | V2 |
| Coating | electrogalvanized |
| Insulating material | PA |
| Components | halogen-free |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 105 °C |
| Permanent temperature | 105 °C |
| Short-term temperature | 120 °C |
Why Proax for Phoenix Contact 3240532?
Proax is an authorized distributor of Phoenix Contact 3240532 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
