Series EC

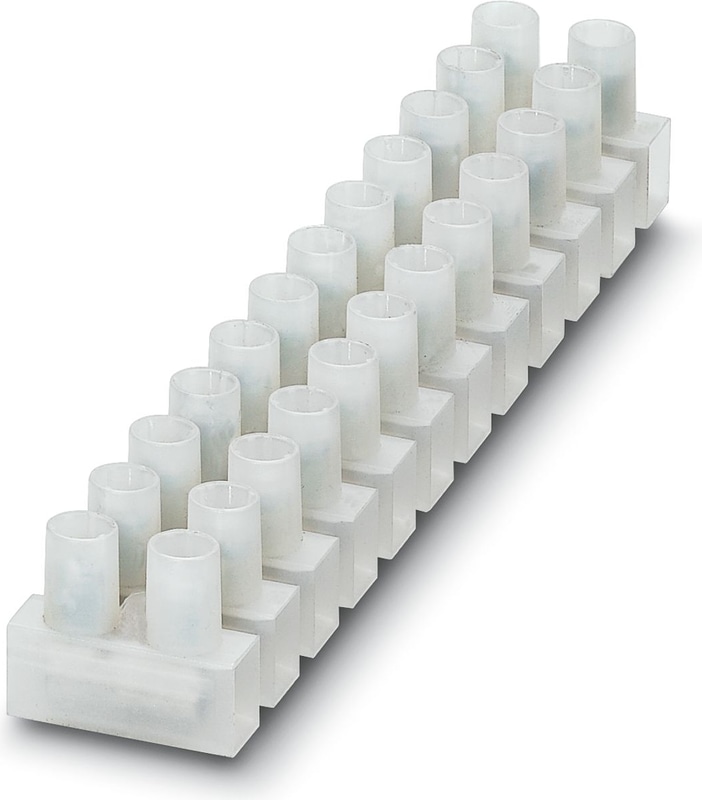

EC 10 TR - Europe connectors
Polyamide Europe terminal strip, transparent, for connecting solid conductors and stranded conductors with ferrules with a cross section of 1 to 10 mm2
Technical Specifications
Product properties
| Number of Positions | 12 |
| Pitch | 11.5 mm |
| Number of Connections | 24 |
| Number of rows | 1 |
Electrical properties
| Maximum power dissipation for nominal condition | 1.82 W |
Connection data
| Nominal cross section | 10 mm² |
| Screw thread | M3,5 |
| Tightening torque | 0.8 ... 1 Nm |
| Stripping length | 7 mm |
| Conductor cross section rigid | 1 mm² ... 10 mm² |
| Cross section AWG | 16 ... 8 (converted acc. to IEC) |
| Conductor cross section flexible | 1 mm² ... 10 mm² |
| Conductor cross section, flexible [AWG] | 16 ... 8 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.75 mm² ... 4 mm² |
| 2 conductors with same cross section, solid | 0.75 mm² ... 2.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.75 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² |
| Nominal Current | 57 A (with 10 mm² conductor cross section) |
| Maximum Load Current | 57 A (with 10 mm² conductor cross section) |
| Nominal Voltage | 450 V (Only use up to 250 V without securing.) |
| Nominal cross section | 10 mm² |
Dimensions
| Width | 22.2 mm |
| Height | 17.3 mm |
| Depth | 22.2 mm |
| Drill hole spacing | 11.5 mm |
| Pitch | 11.5 mm |
Material specifications
| Color | transparent |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PA |
Mechanical data
| Open side panel | No |
Technical data
| Drill hole spacing | 11.5 mm |
Mounting
| Mounting Type | direct screw connection |
