3240123
Official DistributorSKU
PHX3240123
MPN
C-RC 95/M16 DIN
Weight
0.042 kg
Series C-RC

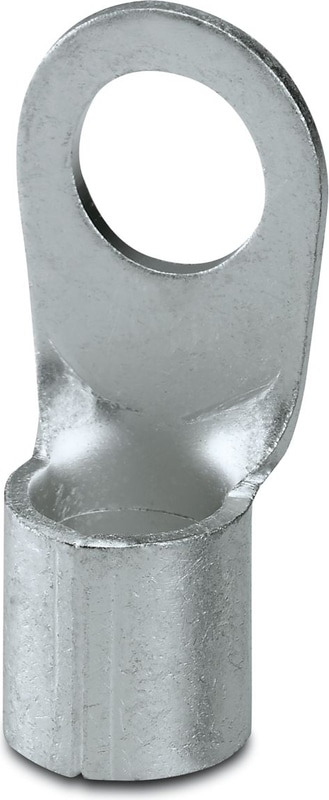

C-RC 95/M16 DIN - Ring cable lug
Ring cable lug, non-insulated, 95 mm2, M16
Technical Specifications
Dimensions
| Width | 28 mm |
| Length of the insulating material sleeve | 20 mm |
| Maximum stripping length | 23 mm |
| Distance from the center to the insulating material sleeve | 24 mm |
| Min. material thickness | 2.5 mm |
| Inner dimensions of the insulating collar | 15 mm |
Internal dimensions
| Internal diameter | 17 mm |
Material specifications
| Color | silver |
| Material | Copper |
| Coating | tin-plated |
Ambient conditions
| Ambient Temperature (Operation) | 110 °C |
Standards and Regulations
| Design according to standard | DIN 46234 |
Why Proax for Phoenix Contact 3240123?
Proax is an authorized distributor of Phoenix Contact 3240123 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
