3201929
Official DistributorSKU
PHX3201929
MPN
AI-XL 2,5- 8 BU
Weight
0 kg
This product is Not Cancellable/Not Returnable
Series AI-XL

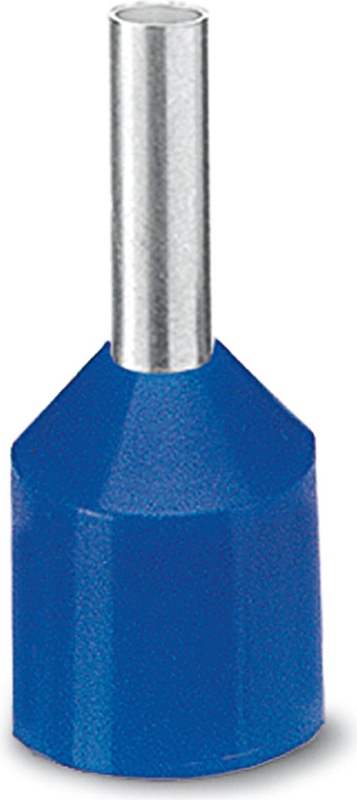

AI-XL 2,5- 8 BU - Ferrule
Ferrule, Length contact range: 8 mm, sleeve length: 14 mm, color: blue
- Previous methods of achieving correct conductor insulation are much more time consuming
- These ferrules can be used for short-circuit-proof cables
Documents
Technical Specifications
Product properties
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | Suitable for short-circuit-proof cables (NSGAFÖU) due to the significantly increased collar diameter |
| Product property | UL certified |
| Product property | Made from soft tin-plated electrolytic copper |
| Product property | halogen-free |
Conductor connection
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG max. | 14 |
| Stripping length | 13 mm |
Dimensions
| Sleeve length | 14 mm |
| Length contact range | 8 mm |
| Maximum stripping length | 13 mm |
| Ferrule diameter | 2.3 mm |
| Sleeve wall thickness | 0.15 mm |
| Insulating collar thickness | 0.3 mm |
| Inner dimensions of the insulating collar | 7.9 mm |
Material specifications
| Color | blue (RAL 5015) |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
Technical data
| Sleeve length | 14 mm |
Ambient conditions
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
Standards and Regulations
| Design according to standard | UL 486F-E, Sonderfarbe |
Why Proax for Phoenix Contact 3201929?
Proax is an authorized distributor of Phoenix Contact 3201929 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
