3201853
Official DistributorSKU
PHX3201853
MPN
AI 95 -25 RD
Weight
0.006 kg

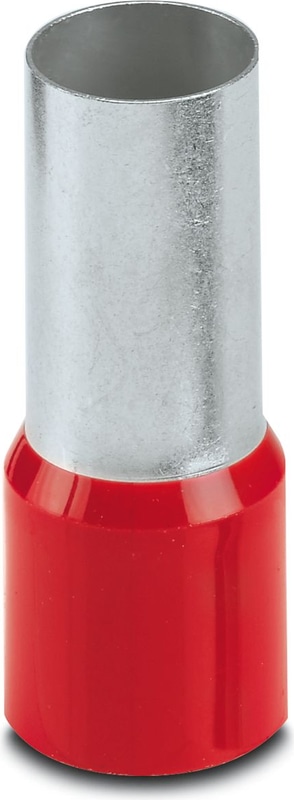

AI 95 -25 RD - Ferrule
Ferrule, sleeve length: 25 mm, color: red
- The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
- The insulation reliability of close connections is increased and the splicing of wires is prevented
Technical Specifications
Notes
| General | Ferrules are not included in DIN 46228-4: 1990-09 |
Conductor connection
| Conductor cross section flexible max. | 95 mm² |
| Conductor cross section AWG max. | 4 |
| Stripping length | 30 mm |
Dimensions
| Sleeve length | 25 mm |
| Maximum stripping length | 30 mm |
| Ferrule diameter | 14.7 mm |
| Sleeve wall thickness | 0.35 mm |
| Insulating collar thickness | 0.6 mm |
| Inner dimensions of the insulating collar | 18 mm |
Material specifications
| Color | red |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | tin-plated (galvanic) |
| Components | free from silicone and halogen |
Technical data
| Sleeve length | 25 mm |
Ambient conditions
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
Standards and Regulations
| Design according to standard | Special color |
