3201330
Official DistributorSKU
PHX3201330
MPN
AI 16 -18 GN
Weight
0.001 kg
This product is Not Cancellable/Not Returnable

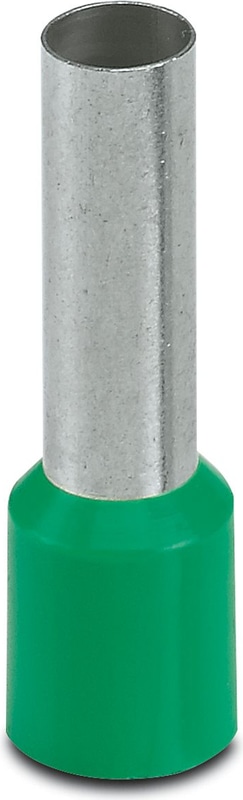

AI 16 -18 GN - Ferrule
Ferrule, sleeve length: 18 mm, color: green
- The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
- The AI 0,25... can also be used to process 0.14 mm² conductors
- In terms of dimensions, they correspond to DIN 46228‑4: 1990‑09
Technical Specifications
Product properties
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
Conductor connection
| Conductor cross section flexible max. | 16 mm² |
| Conductor cross section AWG max. | 6 |
| Stripping length | 22 mm |
Dimensions
| Sleeve length | 18 mm |
| Maximum stripping length | 22 mm |
| Ferrule diameter | 5.8 mm |
| Sleeve wall thickness | 0.2 mm |
| Insulating collar thickness | 0.4 mm |
| Inner dimensions of the insulating collar | 8.8 mm |
Material specifications
| Color | green |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | tin-plated (galvanic) |
| Components | free from silicone and halogen |
Technical data
| Sleeve length | 18 mm |
Ambient conditions
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
Standards and Regulations
| Design according to standard | Special color |
Why Proax for Phoenix Contact 3201330?
Proax is an authorized distributor of Phoenix Contact 3201330 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
