3201181
Official DistributorSKU
PHX3201181
MPN
AI 16 -12 IV
Weight
0.001 kg

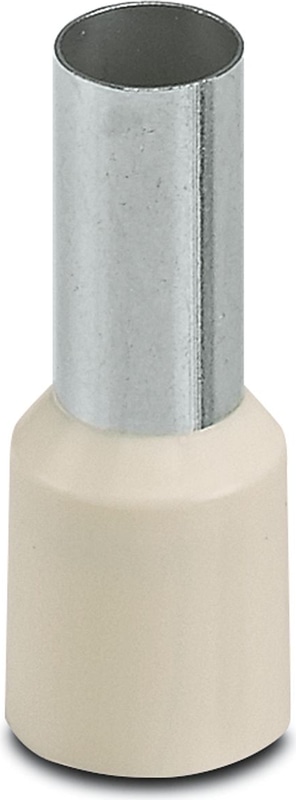

AI 16 -12 IV - Ferrule
Ferrule, sleeve length: 12 mm, color: ivory
Technical Specifications
Conductor connection
| Conductor cross section flexible max. | 16 mm² |
| Conductor cross section AWG max. | 6 |
| Stripping length | 16 mm |
Dimensions
| Sleeve length | 12 mm |
| Maximum stripping length | 16 mm |
| Ferrule diameter | 5.8 mm |
| Sleeve wall thickness | 0.2 mm |
| Insulating collar thickness | 0.4 mm |
| Inner dimensions of the insulating collar | 8.8 mm |
Material specifications
| Color | ivory |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | tin-plated (galvanic) |
| Components | free from silicone and halogen |
Technical data
| Sleeve length | 12 mm |
Ambient conditions
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
Standards and Regulations
| Design according to standard | NFC 63-023 |
Why Proax for Phoenix Contact 3201181?
Proax is an authorized distributor of Phoenix Contact 3201181 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
