Official DistributorSKU
This product has been discontinued

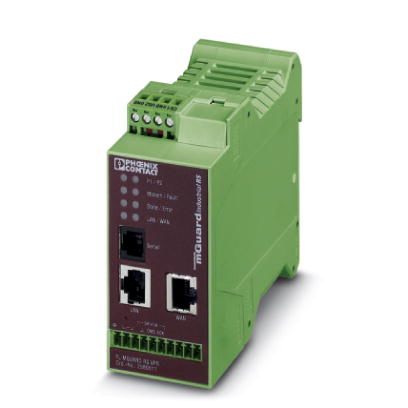

Router FL MGUARD RS
Router with intelligent Firewall, data throughput up to 99 Mbps (Wire Speed Performance), Stateful Inspection Firewall for optimum safety and extremely simple configuration, in the ME45 format
- Maximum security
- Maximum performance
- Central management tool
Technical Specifications
Dimensions
| Width | 45 mm |
| Height | 99 mm |
| Depth | 112 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Interfaces
| Interface 1 | Ethernet |
| No. of ports | 2 |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission Speed | 10/100 Mbps |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
Function
| Basic Functions | Router with intelligent Firewall |
| Supported browsers | HTTPS support required |
| Processor | 533 MHz |
| Status and diagnostic indicators | LEDs:P1, P2, Fault, State, Error, LAN, WAN |
| Signal contact control voltage | 24 V DC (typical) |
| Signal contact control current | 170 mA (typical) |
Security functions
| Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
| Network Time Protocol (NTP) client | Client |
| Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
| Remote Syslog Logging | On externals server |
| Virtual private network (VPN) throughput | max. 85 Mbps (Router mode, VPN bidirectional throughput) |
| Virtual private network (VPN) throughput | max. 58 Mbps (Stealth mode, VPN bidirectional throughput) |
| Encryption methods | DES, 3DES, AES-128, -192, -256 |
| Firewall data throughput | max. 210 Mbps (Router mode, default firewall rules, bidirectional throughput) |
| Firewall data throughput | max. 149 Mbps (Stealth mode, default firewall rules, bidirectional throughput) |
| Firewall rules | Configurable stateful inspection firewall |
| Filtering | MAC and IP addresses, ports, protocols |
| Protection against | IP spoofing, DoS and Syn Flood Protection |
| Routing | Standard routing, NAT, 1:1-NAT, port forwarding |
Network expansion parameters
| Maximum conductor length (twisted pair) | 100 m |
Supply voltage
| Supply Voltage | 24 V DC |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Supply Voltage Range | 9 V DC ... 36 V DC |
| Typical current consumption | 170 mA |
General
| Mounting Type | DIN rail |
| Type AX | Stand-alone |
| Net weight | 250 g |
| Housing Material | PA 6.6 |
Conformity with EMC directives
| Developed in acc. with standard | IEC 61000-6.2 |
| Test standard | IEC 61000-4-2 (ESD) |
| Test result | 6 kV contact discharge, 8 kV air discharge |
| Test standard | IEC 61000-4-3 (immunity to radiated interference) |
| Test result | 10 V/m (80 MHz ... 2000 MHz) |
| Test standard | IEC 61000-4-4 (burst) |
| Test result | 2 kV power line, 1kV data line |
| Test standard | IEC 61000-4-5 (surge) |
| Test result | power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line |
| Test standard | IEC 61000-4-6 (immunity to conducted interference) |
| Test result | 3 V (10 kHz ... 150 kHz), 10 V (150 kHz ... 80 MHz) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
Accessories
2891372 - Patch cable, degree of protection: IP20, cable length: 15 m, number of positions: 8, 1 Gbps, CAT6, Ethernet- 2891576 - Patch cable, degree of protection: IP20, cable length: 20 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
2744856 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5 (IEC 11801:2002), material: Plastic, connection method: Crimp connection, connection cross section: AWG 26- 24, cable outlet: straight, color: gray, Ethernet- 2744571 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5 (IEC 11801:2002), material: Plastic, connection method: Crimp connection, connection cross section: AWG 26- 24, cable outlet: straight, color: green, Ethernet
2744869 - Crimping pliers, for assembling the RJ45 plugs FL PLUG RJ45..., for assembly on site
