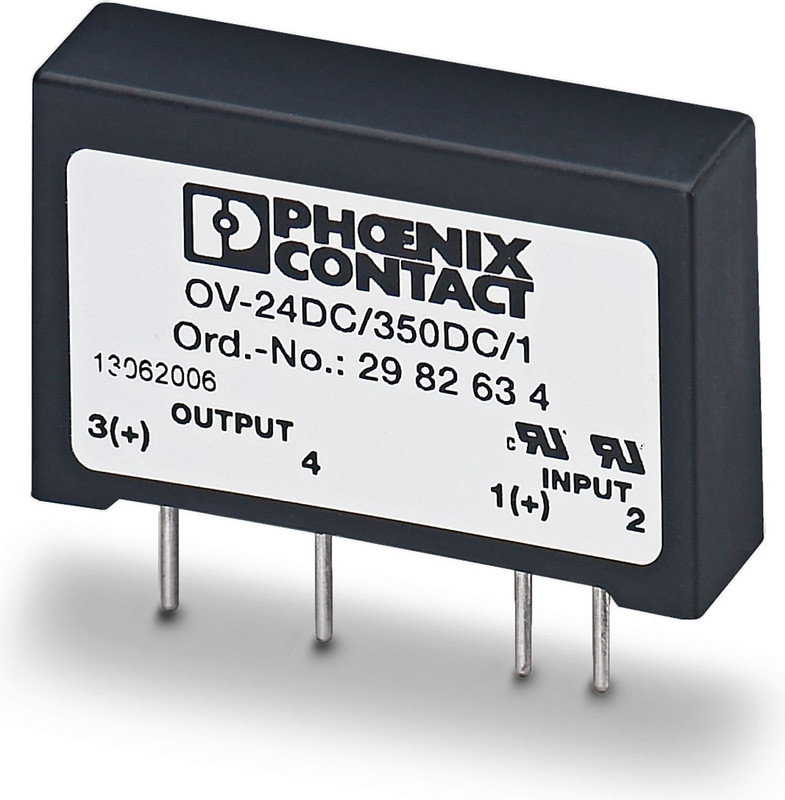

OV-24DC/350DC/1 - Semi-conductor relay
Solid-state relay, for signal amplification and isolation of the control and load circuits, can be plugged in the solderable plug-in bases SIM-AMS or with PCB connection for mounting directly onto the PCB, input: 4.25-32 V DC, output: 1-350 V DC/1 A
- Compact dimensions
- No electromagnetic interference
- High test voltage of up to 4 kV between control and load circuits
- No wear, even at high switching frequencies
- Electrically insulated housing
- No contact bounce – no movable parts
- Switching power of up to 350 V DC/1 A, 60 V DC/4 A or 480 V AC/5 A
Documents
Technical Specifications
Product properties
| Operating mode | 100% operating factor |
Insulation characteristics
| Insulation | Basic insulation |
Data management status
| Date of last data management | 17.05.2024 |
Electrical properties
| Test voltage (Input/output) | 4 kV (50 Hz, 1 min., input/output) |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 4.25 V DC ... 32 V DC |
| Switching threshold "0" signal, voltage | < 1 V DC |
| Switching threshold "1" signal voltage | > 3.3 V DC |
| Typical input current at UN | 15 mA |
| Typical response time | < 100 µs |
| Typical turn-off time | < 250 µs |
| Transmission frequency | 100 Hz |
Output data
| Design of digital output | electronic |
| Output voltage range | 1 V DC ... 350 V DC |
| Limiting Continuous Current | 1 A (see derating curve) |
| Min. load current | 1 mA |
| Leakage current | 100 µA |
| Surge current | 20 A (tp = 1 s) |
| Voltage drop at max. limiting continuous current | 0.5 V |
| Output circuit | 2-conductor |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
Dimensions
| Width | 10.5 mm |
| Height | 43 mm |
| Depth | 25.4 mm |
Material specifications
| Color | black (RAL 9005) |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 80 °C |
| Ambient temperature (storage/transport) | -20 °C ... 80 °C |
UKCA
| Certificate | UKCA-compliant |
Standards and Regulations
| Standards/regulations | EN 61000-4-2 |
| Standards/regulations | EN 61000-4-3 |
| Standards/regulations | EN 61000-4-4 |
| Standards/regulations | EN 55011 |
Mounting
| Assembly note | Can be aligned with > 9 mm spacing |
| Mounting Position | any |
