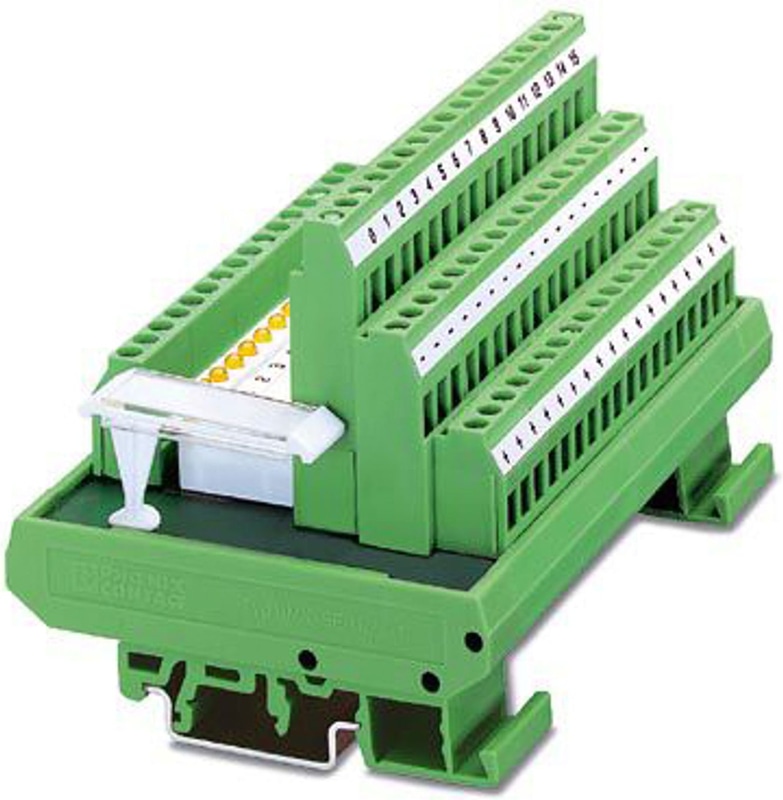

UMKS- 8 IM - Interface module
VARIOFACE module, for mounting on NS 35/7.5 or NS 32, for connecting 8 proximity switches
Technical Specifications
Product properties
| Product family | VARIOFACE |
| Operating mode | 100% operating factor |
Insulation characteristics
| Insulation | Functional insulation |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. permissible operating voltage | 250 V AC/DC |
| Max. permissible current | 1 A (per path) |
| Rated Insulation Voltage | 300 V |
| Rated surge voltage | 2.5 kV |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | No |
Item dimensions
| Width | 67.5 mm |
| Height | 77 mm |
| Depth | 72 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | Polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Standards and Regulations
| Standards/regulations | EN 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Notes
| Notes on operation | The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates). |
| Notes on operation | Ensure that the supply voltage of the device has a common reference potential. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
