Phoenix Contact 2970154

2970154

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2970154
MPN
UMKS- E48M-VS
Weight
0.298 kg
This product is Not Cancellable/Not Returnable
Series UMKS-E

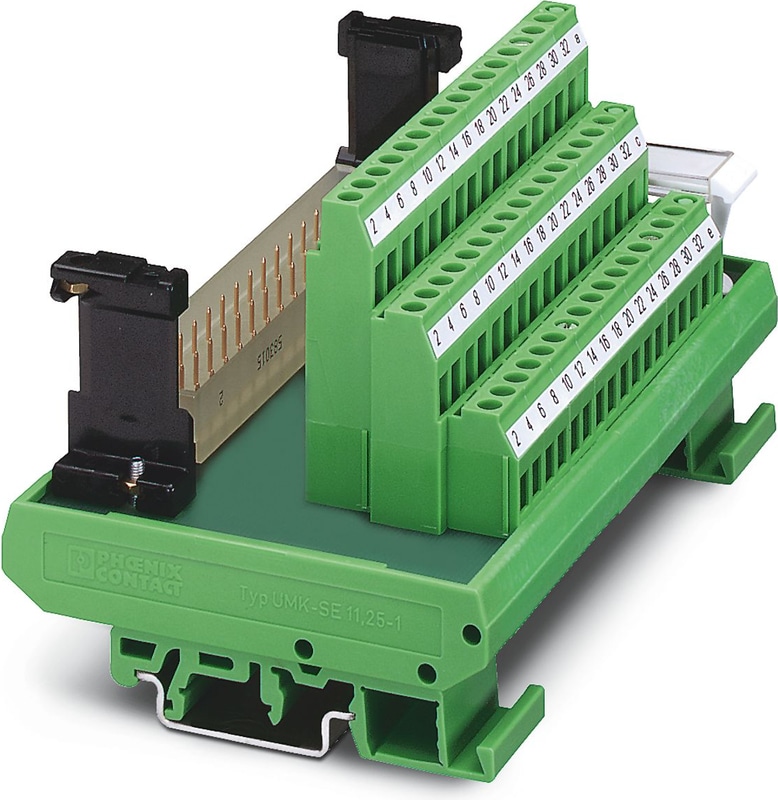

UMKS- E48M-VS - Interface module

VARIOFACE module, for IEC 603/DIN 41612 connector, type E, 48-pos., a, c, e components mounted, with male connector, cable housing with screw interlock

Technical Specifications

Product properties

Product familyVARIOFACE
Number of Positions48

Insulation characteristics

Overvoltage categoryII
Pollution degree2

Electrical properties

Nominal voltage UN125 V AC/DC
Max. current carrying capacity per branch4 A
Rated Insulation Voltage125 V
Rated surge voltage1.2 kV (Functional insulation)

Field level

Connection in acc. with standardIEC / EN
Connection MethodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Controller level

Connection MethodIEC 603/DIN 41612 connection
Number of Connections1
Number of Positions48

Signaling

Status display presentNo

Item dimensions

Width123.6 mm
Height77 mm
Depth70.87 mm

Material specifications

Colorgreen (RAL 6021)
Housing insulation materialPolyamide PA non-reinforced

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Standards and Regulations

Standards/regulationsDIN EN 50178
Standards/regulationsIEC 60664

Mounting

Mounting TypeDIN rail mounting
Mounting Positionany

Notes

Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Why Proax for Phoenix Contact 2970154?

Proax is an authorized distributor of Phoenix Contact 2970154 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
