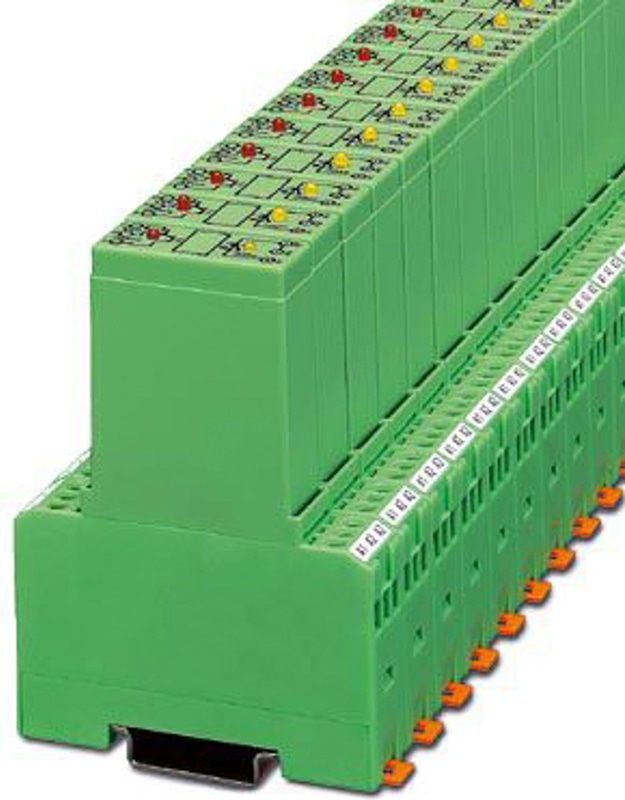

The figure shows version EMG 17-OE, with short-circuit proof DC voltage output, max. 500 mA
Official DistributorSKU
MPN
EMG 17-OE- 24DC/ 24DC/500
Weight
0.058 kg
Series EMG
EMG 17-OE- 24DC/ 24DC/500 - Solid-state relay module
Input optocoupler, with light indicator and protection circuits in the input and output circuits, input: 24 V DC, output: short-circuit resistant, 12-35 V DC/max. 500 mA
EMG
The Phoenix Contact EMG Series encompasses a range of relay modules designed for various industrial applications, offering both electromechanical and solid-state relay options. These modules are engineered for reliable switching of medium to large loads and are suitable for use in control systems, automation, and other electrical circuits.
Key Features:
Compact Design: The EMG Series relay modules are designed with a compact form factor, typically featuring a 17.5 mm width, facilitating efficient DIN rail mounting and space-saving installations.
Versatile Input Voltages: These modules support a range of input voltages, including 24 V DC, 24 V AC/DC, and 230 V AC, accommodating diverse control system requirements.
Robust Output Capabilities: Equipped with various contact configurations, such as single or double changeover contacts, the EMG Series can handle different load types and capacities.
Integrated Protective Circuits: Many modules in this series include built-in protective features like freewheeling diodes, polarity protection diodes, and surge protection, enhancing operational safety and longevity.
Status Indicators: LED indicators are commonly integrated to provide clear visual status of the relay's operational state, simplifying monitoring and troubleshooting.
Technical Specifications
Product properties
| Application | Input function |
| Operating mode | 100% operating factor |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Test voltage (Input/output) | 3.5 kV AC (Input/output) |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 21.6 V DC ... 26.4 V DC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 5 mA |
| Typical response time | 50 µs |
| Typical turn-off time | 200 µs |
| Status display | Yellow LED |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | RC element |
| Transmission frequency | 300 Hz |
Output data
| Design of digital output | electronic |
| Output nominal voltage | 24 V DC |
| Output voltage range | 22 V DC ... 35 V DC |
| Limiting Continuous Current | 500 mA |
| Current limitation at short-circuits | 620 mA (continued short-circuit resistant) |
| Voltage drop at max. limiting continuous current | 2 V |
| Output circuit | 3-conductor, ground-referenced |
| Error indication | Red LED, (flashes in the event of short-circuits or overload) |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Free running; Freewheeling diode |
Input side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Output side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 17.5 mm |
| Height | 75 mm |
| Depth | 102 mm |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
| Standards/regulations | VDE 0110 |
Mounting
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
