Official DistributorSKU
MPN
EMG 10-OV-120AC/24DC/1
Weight
0.042 kg
This product is Not Cancellable/Not Returnable
Series EMG

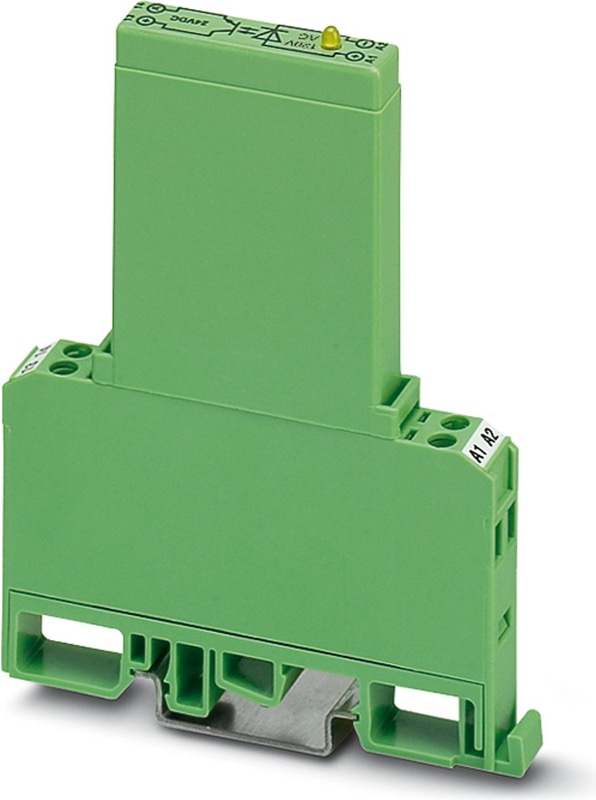

EMG 10-OV-120AC/24DC/1 - Solid-state relay module
Power solid-state relay, with LED and protective circuit in input and output circuits, input: 120 V AC, output: 5 - 36 V DC/max. 1 A
EMG
The Phoenix Contact EMG Series encompasses a range of relay modules designed for various industrial applications, offering both electromechanical and solid-state relay options. These modules are engineered for reliable switching of medium to large loads and are suitable for use in control systems, automation, and other electrical circuits.
Key Features:
Compact Design: The EMG Series relay modules are designed with a compact form factor, typically featuring a 17.5 mm width, facilitating efficient DIN rail mounting and space-saving installations.
Versatile Input Voltages: These modules support a range of input voltages, including 24 V DC, 24 V AC/DC, and 230 V AC, accommodating diverse control system requirements.
Robust Output Capabilities: Equipped with various contact configurations, such as single or double changeover contacts, the EMG Series can handle different load types and capacities.
Integrated Protective Circuits: Many modules in this series include built-in protective features like freewheeling diodes, polarity protection diodes, and surge protection, enhancing operational safety and longevity.
Status Indicators: LED indicators are commonly integrated to provide clear visual status of the relay's operational state, simplifying monitoring and troubleshooting.
Technical Specifications
Product properties
| Application | Output function |
| Operating mode | 100% operating factor |
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
Electrical properties
| Test voltage (Input/output) | 3.5 kV AC (Input/output) |
Input data
| Nominal input voltage UN | 120 V AC |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Input voltage range | 96 V AC ... 144 V AC |
| Switching threshold "0" signal in reference to UN | ≤ 0.25 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 4 mA |
| Typical response time | 25 ms |
| Typical turn-off time | 25 ms |
| Status display | Yellow LED |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Transmission frequency | 10 Hz |
Output data
| Design of digital output | electronic |
| Output nominal voltage | 24 V DC |
| Output voltage range | 5 V DC ... 36 V DC |
| Limiting Continuous Current | 1 A (see derating curve) |
| Surge current | 2 A (t = 1 s) |
| Peak offstate voltage | 45 V DC (Collector-emitter reverse voltage) |
| Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-conductor, floating |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
Input side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Output side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 10 mm |
| Height | 75 mm |
| Depth | 102 mm |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Accessories
Why Proax for Phoenix Contact 2944261?
Proax is an authorized distributor of Phoenix Contact 2944261 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
